Constructor P90 - Technical Information

© Constructor 2020 3
Racking dimensions (mm)
Minimum distance from oor to upper edge of rst supporting level is 180 mm excluding thickness
of foot and levelling shims.
In case of high bay loads another beam is applicable which results in minimum distance from oor to
upper edge being 230 mm excluding thickness of foot and levelling shims.
Supporting levels are adjustable in increments of 50 mm. Upright height for short side handling of
pallet is 1037 mm for Tox beam and 1100 mm for Bx beam, exterior measurement of supporting level
is 1100 mm.
Uprights for long side handling as well as other special depths are also available.
Beam height (h) = 80, 90, 100, 120, 125, 140 and 150 mm. Other beam heights may occur.
Max. load per supporting level has been calculated based on maximum deection of L / 200.

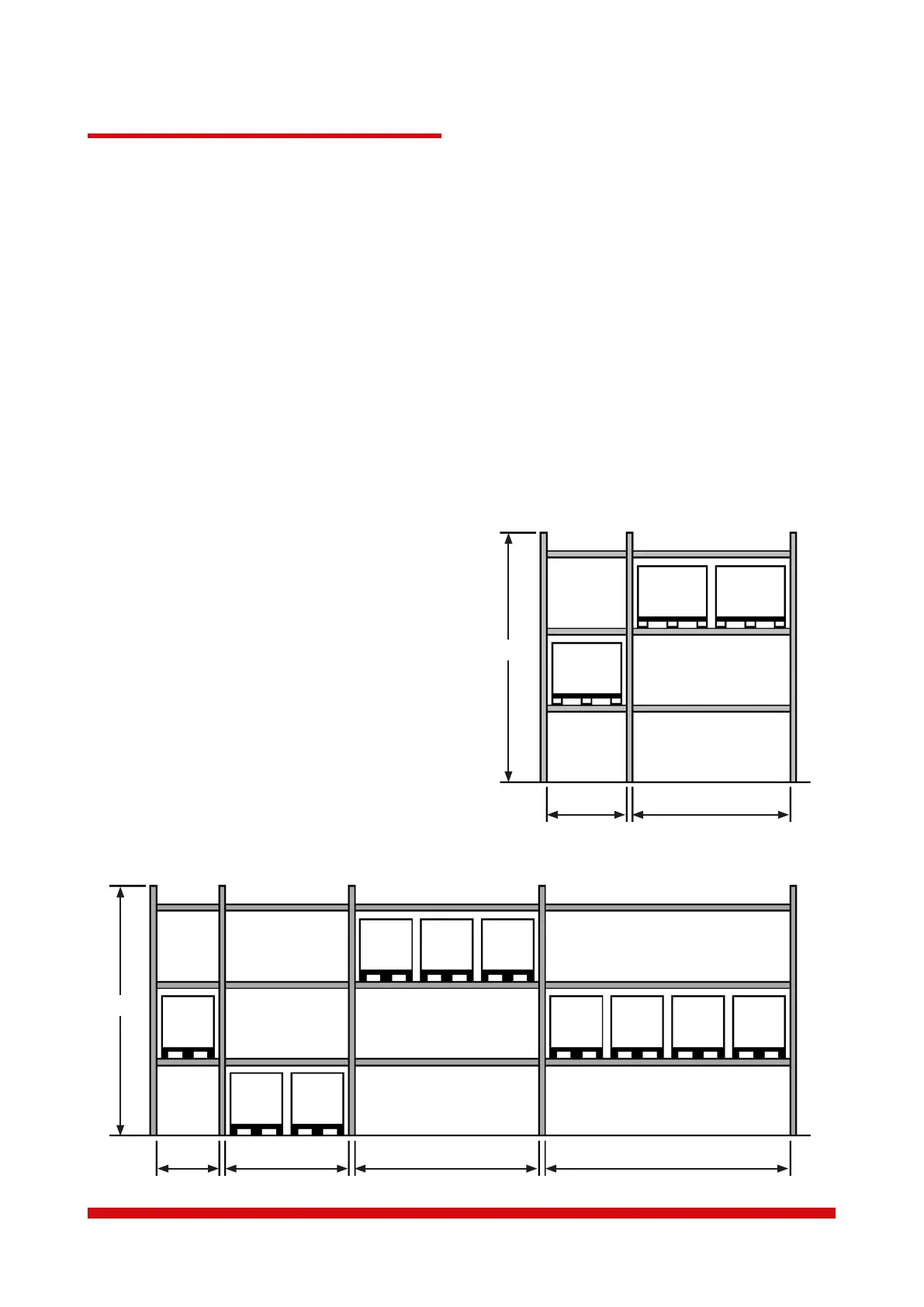

Technical information
H
950
1800/1850/1900
2700/2750 3600
H
1350 2700/2750
