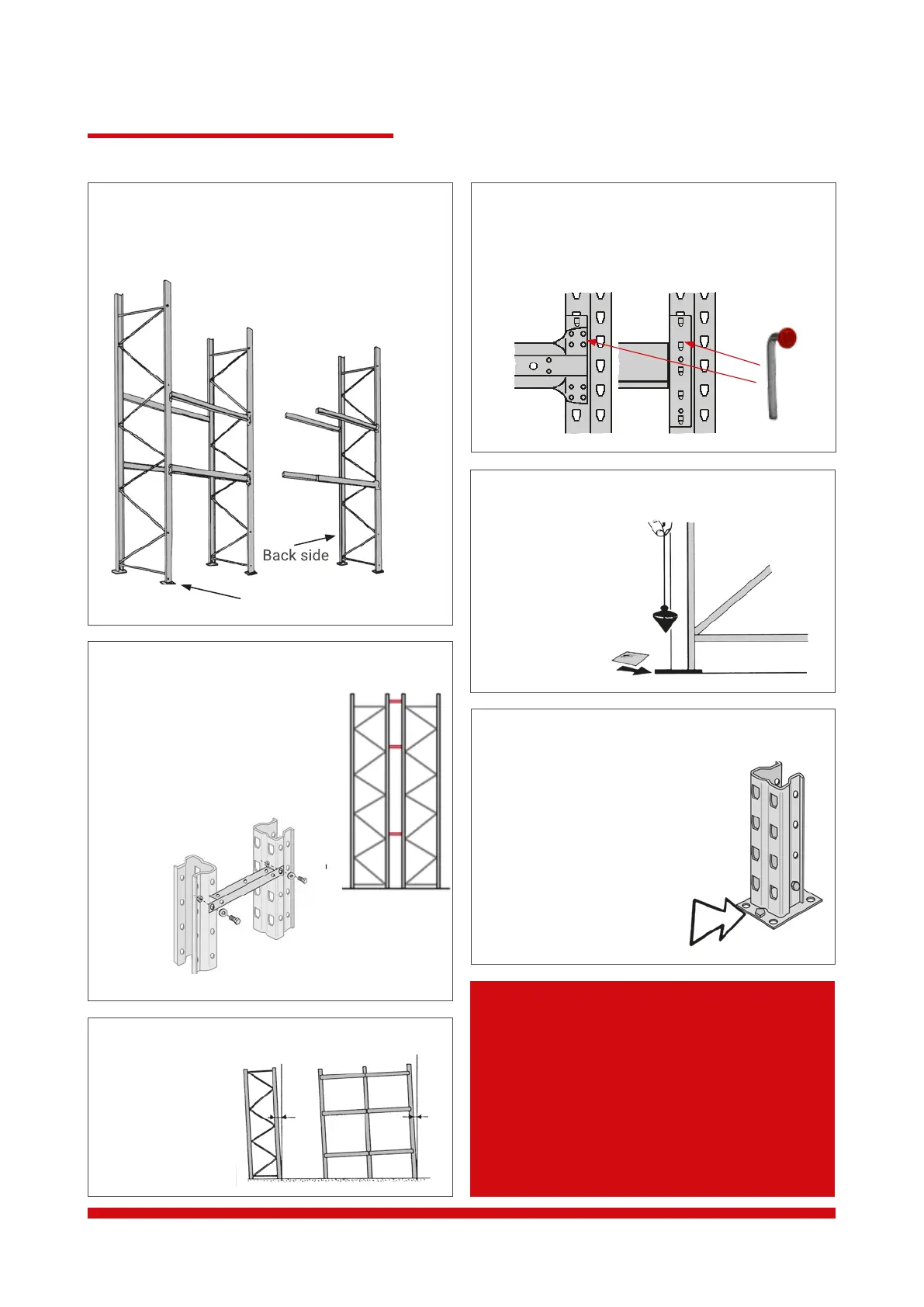

Upright installation
Installation of start / follow bay
Be careful to position the handling and back
side correctly.
Spacing - double racking
Spacers are placed maximum
100 mm from the attachment
points of the diagonal bracing.
The rst is approx. 1300 mm
from oor and in top. Hereafter at
every 4th diagonal bracing.
Handling side
Bolt M10x25 + bracket,
nut M10 nyloc
Max 100
mm
+
Supporting beam
Place the supporting beam, and secure it
with the safety pin.
Control of plumb line
Level if
required.
Inclination
Direction
connected to
the plumb line -
max H/500 (2,0
mm/m)
Anchorage
All uprights must be anchored
to the oor. One expansion
bolt/concrete screw per foot.
Anchorage should be in the
middle slot.
If anchoring in other oors
other than concrete,
please contact Constructor
for guidance.
NOTE!
Prior to the pallet racking being anchored
in the oor, there is a risk of the rack
tilting. The risk is increased proportionally
to depth and height of upright.
If you have any questions, please contact
the manufacturer.
