9. PREFACE GENERAL CHARACTERISTICS
ELECTRONIC BOARD
This device consists of a fully managed electronic board containing a flash microprocessor with:
INPUT : Nr.1 Keyboard consisting of 4 buttons and 2 leds with
: 4-pin connector for the up-date of the microprocessor
OUTPUT: Nr.1 For activation switch porta-filter and Barista mode switch
ELECTRONIC CIRCUIT: Microprocessor programmable flash circuit
MEMORY : Microprocessor board
TOLERANCE TIME SETTINGS: 10mS.
POWER: Auto detection network
OPERATING TEMPERATURE: from 10°C to 60°C.
STORAGE TEMPERATURE: from -10°C to 85°C.
HUMIDITY' : From 40 to 80% humidity, non-condensing

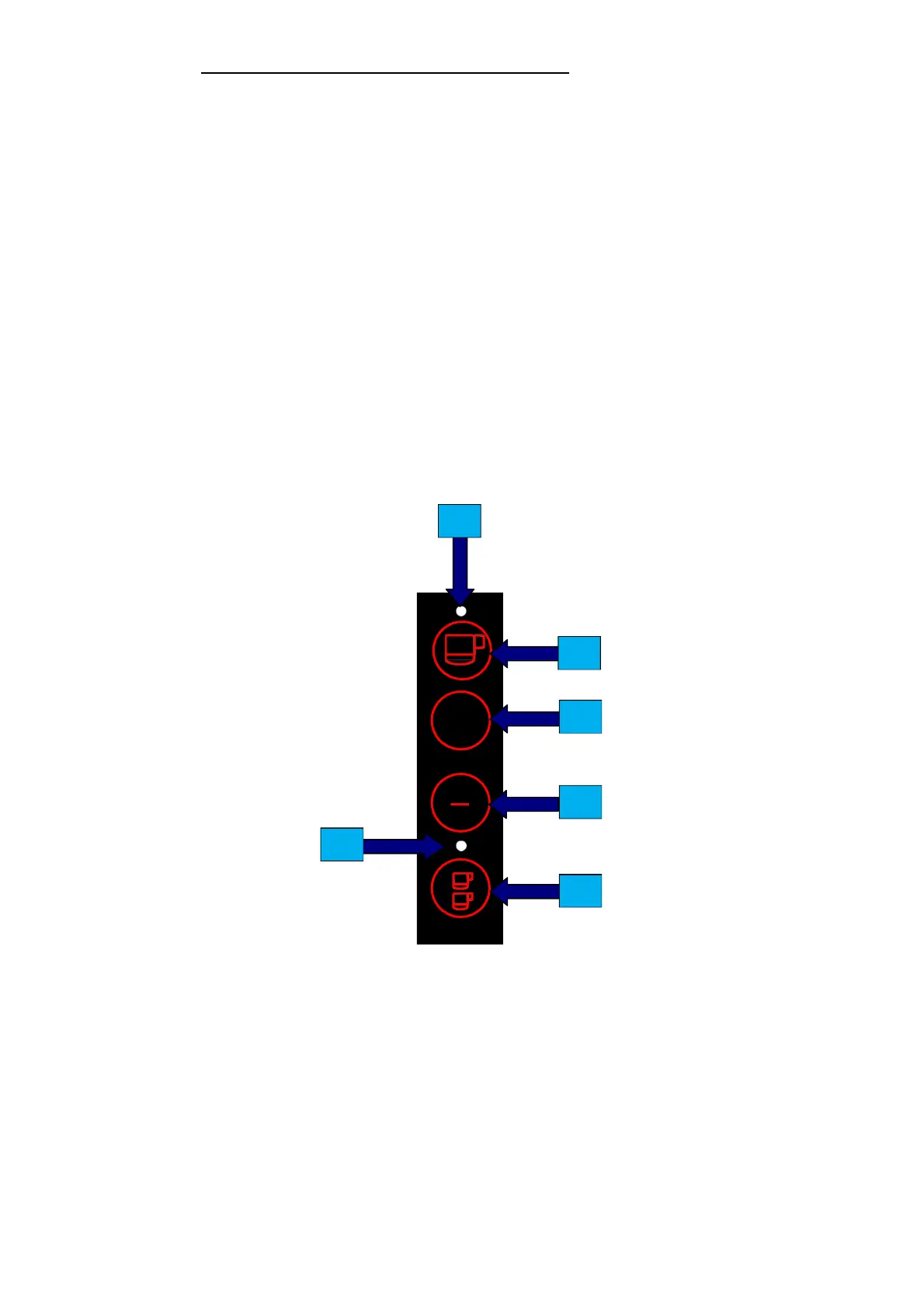

KEY PANEL
INPUT: OUTPUT
:
T 1 :
T 2 :
Button Single Cup
Button
+
L 1 : Led Single Shot
L 2 : Led Double Shot
T 3 :
T 4 :
Button
Button Double Cup
L1
T1
T2
T3
L2
T4
