Edition 05/2021 - MC ULTIMA- Technical documentation - page 29
SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.

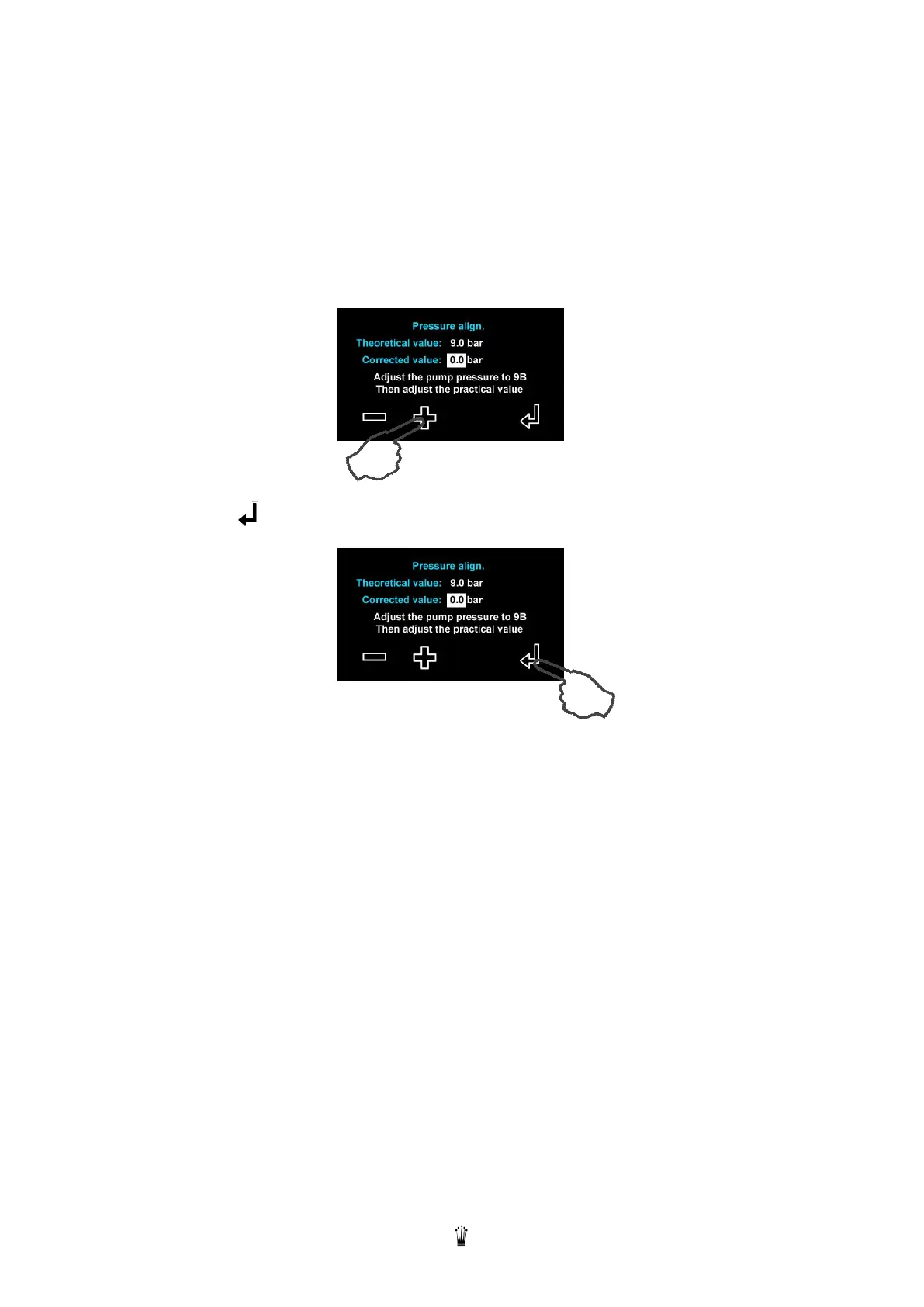

Adjusting method:
o The user read the value shown by the mechanical manometer (example: 9 bars)
o The display shows:
V.TH = Theorical value (That should have been be displayed)
V.Cor = Corrected value (The one will be shown on the display)
o The user adjust “V.Cor” with + and – to display the same value as the mechanical one
o The displayed value will be V.Cor always the same as the mechanical manometer one.
A Press to validate the new value:
