CONTRASTECH Mars Series - Digitaliocontrol

- 17 -
1
Line1_in-
RS422 input-
2
Line1_in+
RS422 input+/Single ended input
3
Line3_in/out-
RS422 I/O-
4
Line3_in/out+
RS422 I/O+ / Single ended I/O
5
Signal ground
Signal GND
6
Line5_out-
RS422 output-
7
Line5_out+
RS422 output+/ Single ended output
8
Line2_in-
RS422 input-
9
Line2_in+
RS422 input+/ Single ended input
10
Line4_GPIO
Single ended I/O
11
Line6_out-
RS422 output-
12
Line6_out+
RS422 output+/ Single ended output

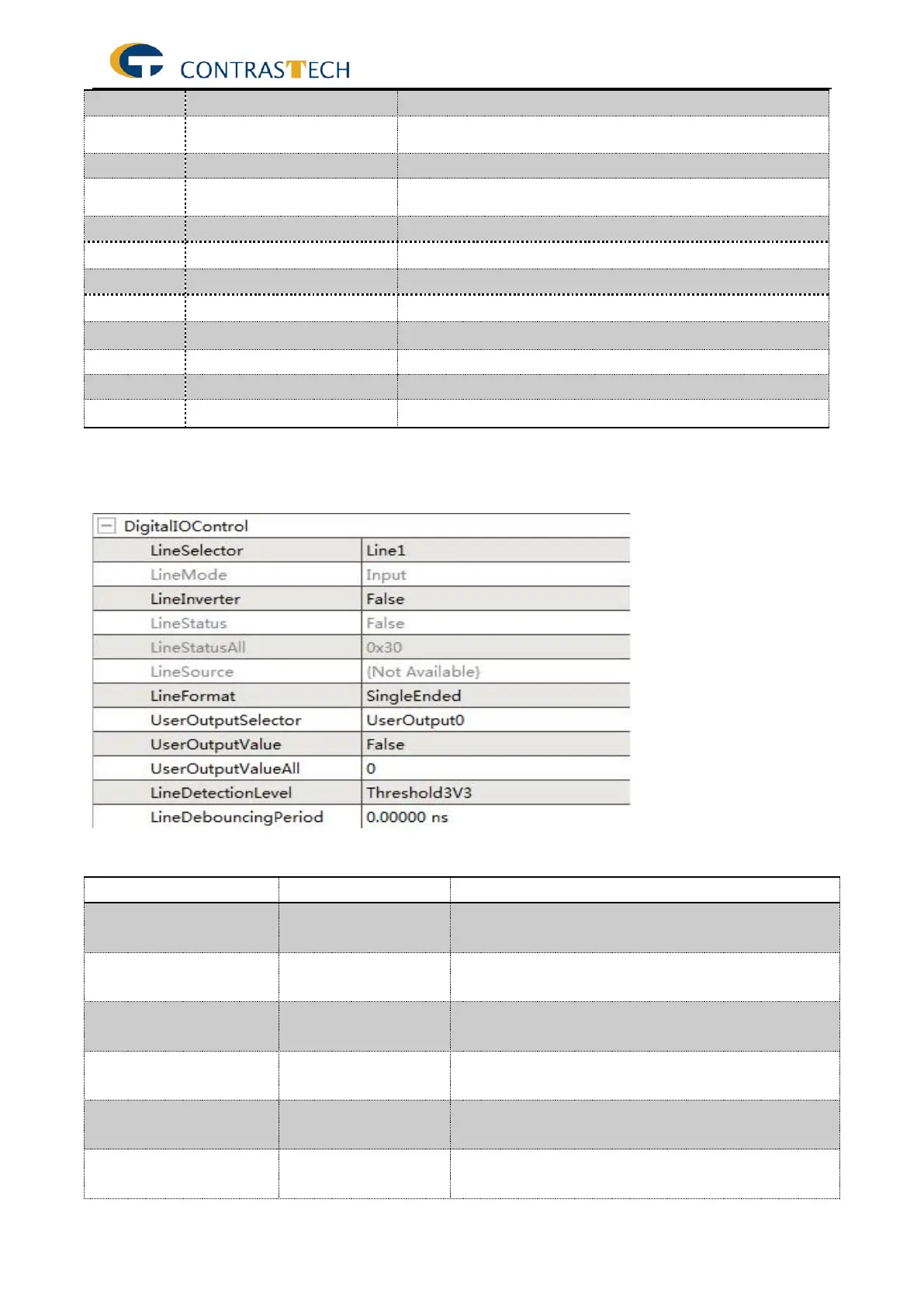

4.3.4 DigitalIOControl
The following table describes each Digital IO Control Features.
Display Name
Feature&Values
Description
LineSelector
LineSelector
Selects the physical line (or pin) of the external
device connector to configure.
LineMode
LineMode
Selects the physical line (or pin) of the external
device connector to configure.
LineInverter
LineInverter
False/True
Controls the inversion of the signal of the selected
input or output Line.
LineStatus
LineStatus
Returns the current status of the selected input or
output Line.
LineStatus All
LineStatus All
Returns the current status of all available Line
signals at time of polling in a single bitfield.
LineSource
LineSource
Selects which internal acquisition or I/O source
signal to output on the selected Line.
