Selects which Gain is controlled by the various
Gain features.
Controls the selected gain as an absolute
physical value. This is an amplification factor
applied to the video signal.
Selects which tap is controlled by the Black
Level feature.
Controls the analog black level as an absolute
physical value. This represents a DC offset
applied to the video signal.
Controls the gamma correction of pixel intensity.
This is typically used to compensate for
non-linearity of the display system (such as
CRT).

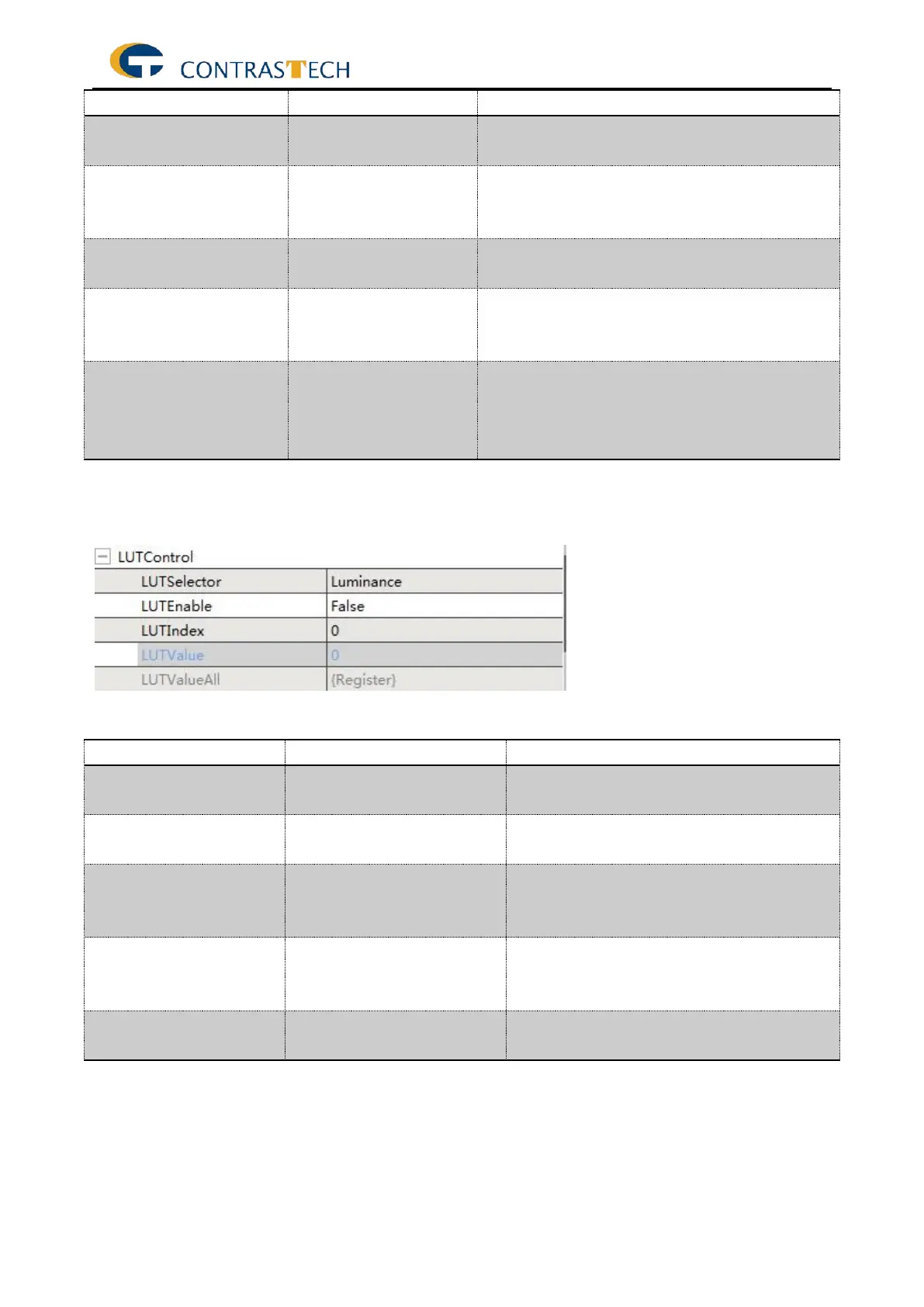

4.3.7 LUTControl
The following table describes each LUT Control features.
Selects which LUT to control.
Activates the selected LUT.
Control the index (offset) of the coefficient to
access in the selected LUT.
Returns the Value at entry LUTIndex of the
LUT selected by LUTSelector.
Accesses all the LUT coefficients in a single
access without using individual LUTIndex.
