CONTRASTECH Mars Series - Indicator Description

- 6 -
12
6
Signal
Description
1
Power
+12~24V DC Power
2
3
-
No connection
4
5
GND
DC Power GND
6

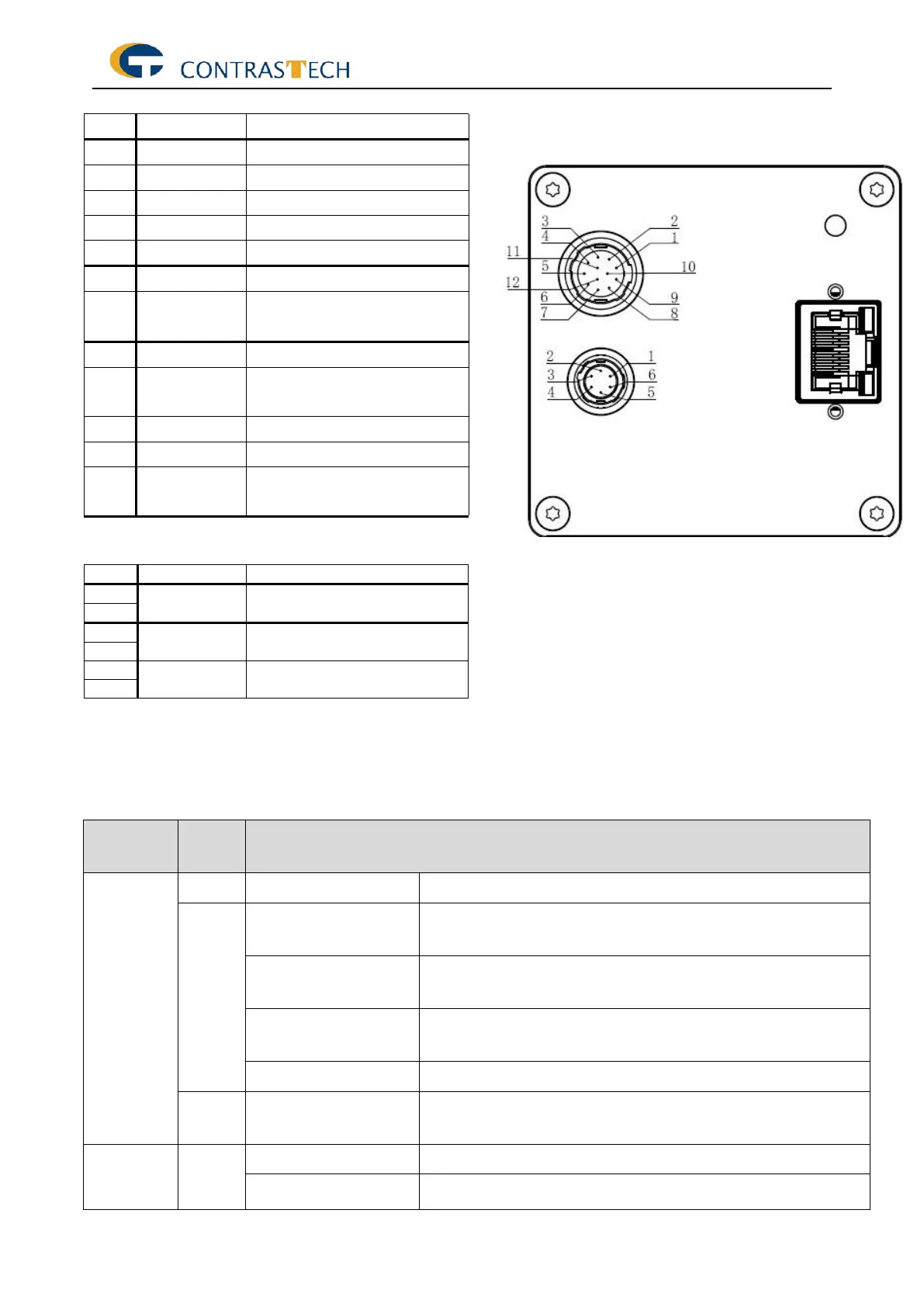

1.4 Indicator Description
Indicator Description of Mars Series Industrial Line Scan Cameras as shown in Table 1-1.
Table 1-1 Indicator Description
Mode
Status
LED
Description
Normal
Red
Fast Flashing Red
The device is starting.
Blue
Low-light Blue
IP has been assigned, Software API is not connected with
the device.
High-light Blue
API is connected with the device, free mode, No image
transmission
Fast Flashing Blue
API is connected with the device, free mode, with image
transmission
Slow Flashing Blue
Using trigger mode.
Red
Blue
Flashing Alternately
Red and Blue
Firmware is upgrading.
Abnormal
Red
Steady Red
Device malfunction: like no stream, firmware upgrading fail..
Slow Flashing Red
The Network is disconnected.
Signal
Description
1
Line1_in-
RS422 input-
2
Line1_in+
RS422 input+/Single ended input
3
Line3_in/out-
RS422 I/O-
4
Line3_in/out+
RS422 I/O+ / Single ended I/O
5
Signal ground
Signal GND
6
Line5_out-
RS422 output-
7
Line5_out+
RS422 output+/ Single ended
output
8
Line2_in-
RS422 input-
9
Line2_in+
RS422 input+/ Single ended
input
10
Line4_GPIO
Single ended I/O
11
Line6_out-
RS422 output-
12
Line6_out+
RS422 output+/ Single ended
output
