Contrec 202D - Page 37

202D-M-V3.1
Intrinsic Safety Connections
33
-
+
MODEL 202D
SAFE AREA
HAZARDOUS AREA
Input
Namur Proximity Detector IS Certified
Link Settings Link 1 Link 2 Link 3
COIL PULSE
DBL DBH
NPS
I
8+ 7-
IS CERTIFIED BARRIER Uo = 24 V maximum Io = 20 mA maximum Po = 320 mW maximum L/R < specified for selected barrier

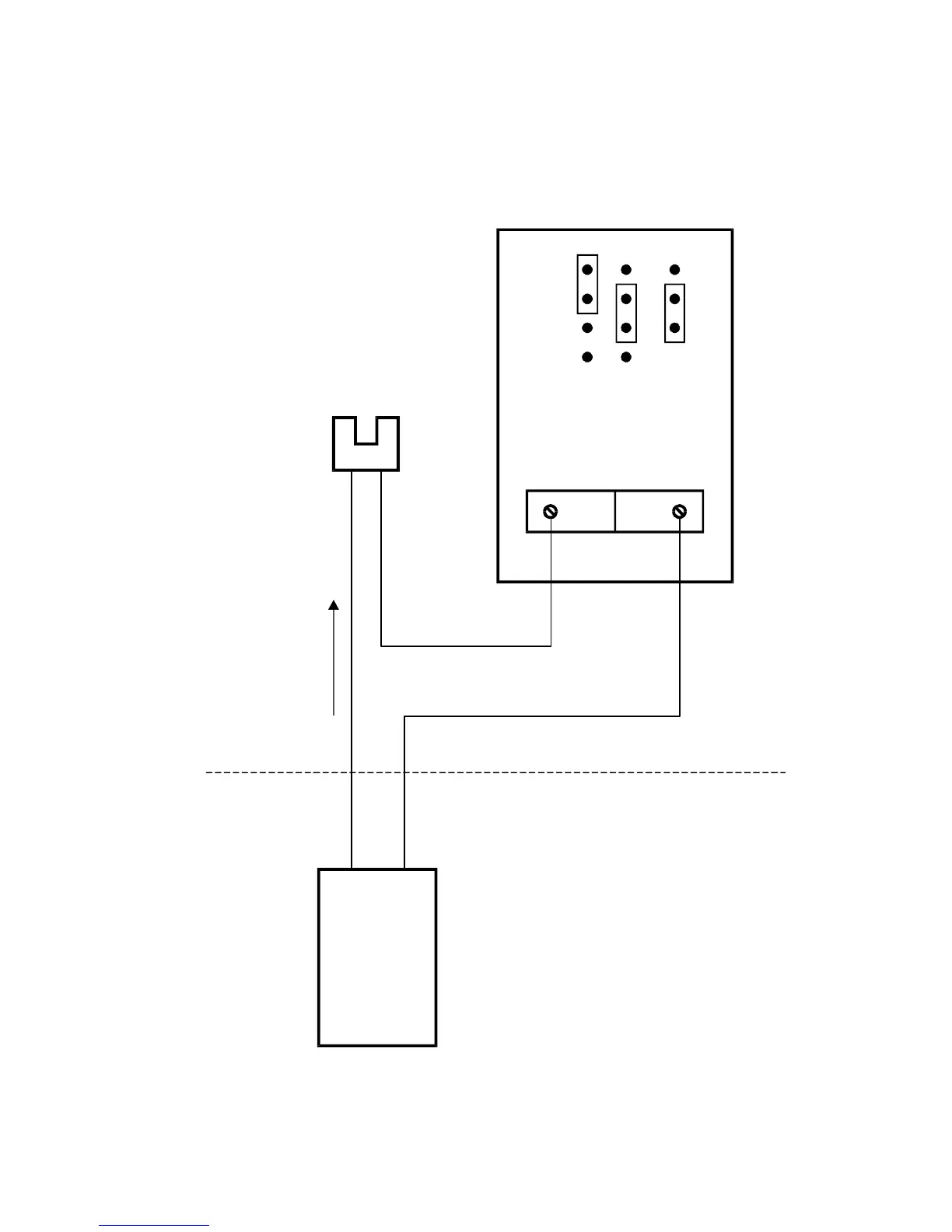

A Namur Switch Input
