9.4 THE MAIN ELECTRONICS
The front section of the housing contains the microprocessor and display. It
is possible to adjust the display contrast via a small potentiometer on the

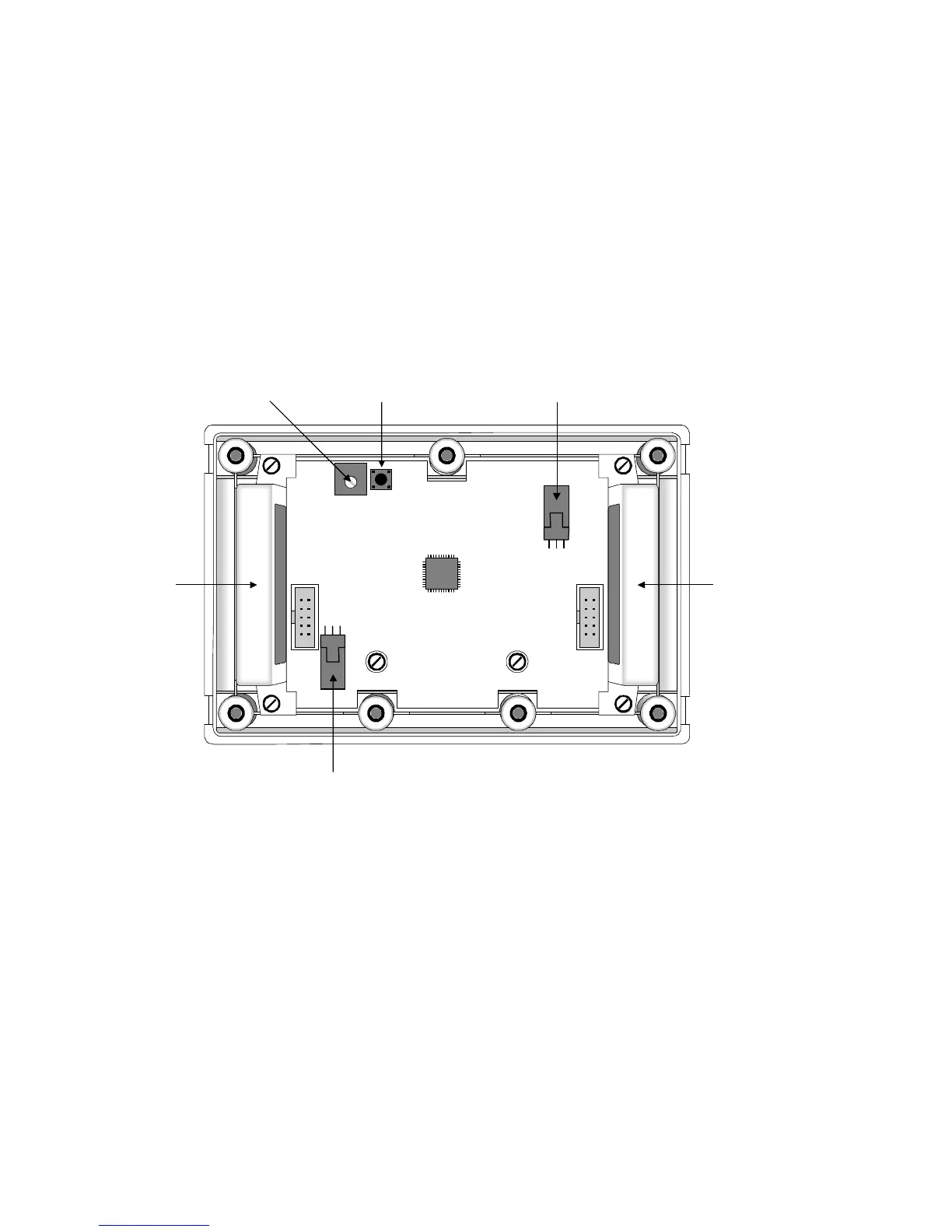

board. The Display Contrast is shown below and this can be adjusted for
optimum contrast.
Adjacent to this control is a RESET switch which can be used to reset
the microprocessor. Note that pressing this button will set all totals to
zero.
BATTERY BATTERY
Battery Connector
Battery Connector
Display Contrast
RESET
