Contrec 202D - 9.2 PANEL MOUNT VERSION

202D-M-V3.1
Installation
39
9.2 PANEL MOUNT VERSION
The panel mount version of the Model 202D is supplied with two panel
mount brackets and plug-in terminals which are accessible from the rear of
the instrument.

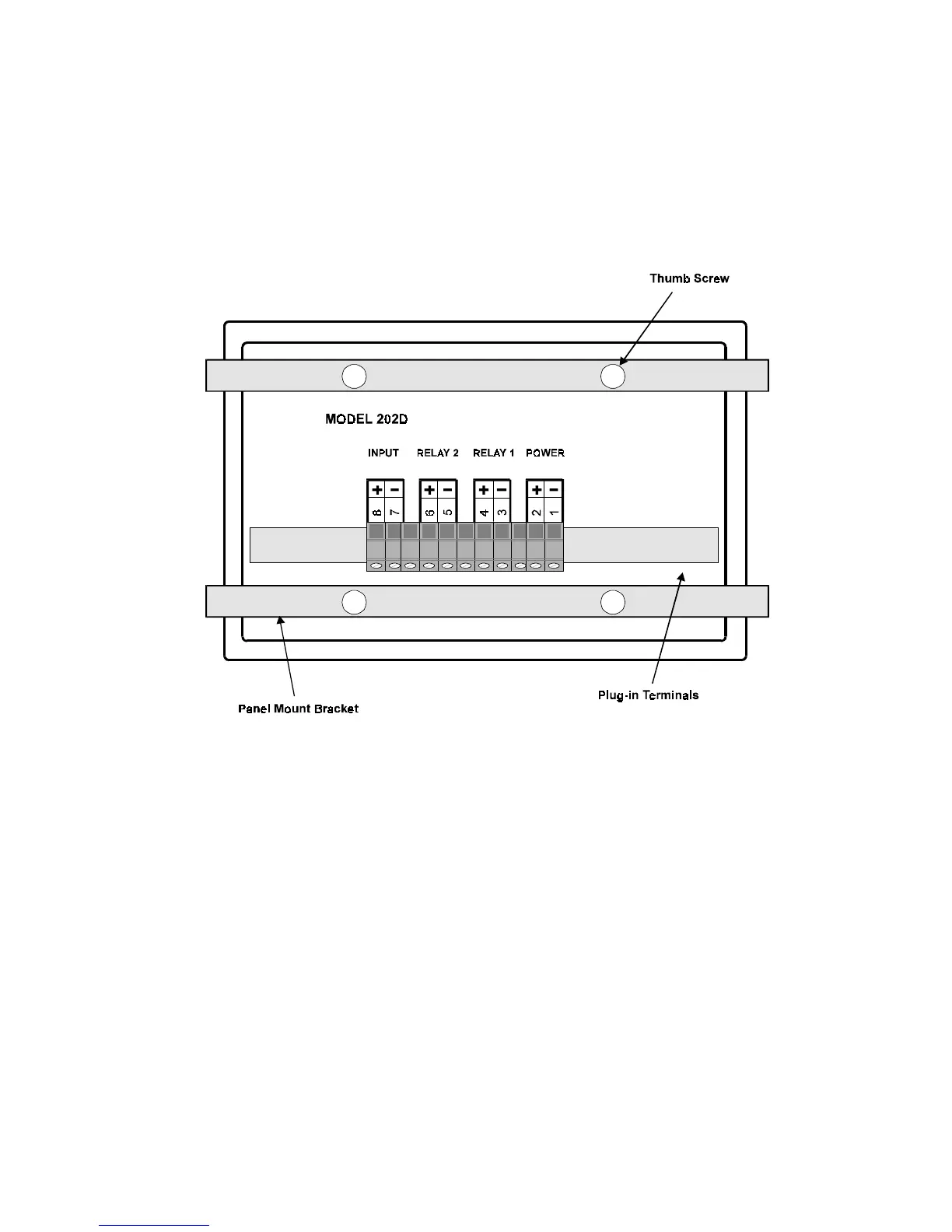

Rear View of 202D Panel Mount Case
The cutout for the panel mount version is 141mm (5.55") wide x 87mm
(3.43") high.
