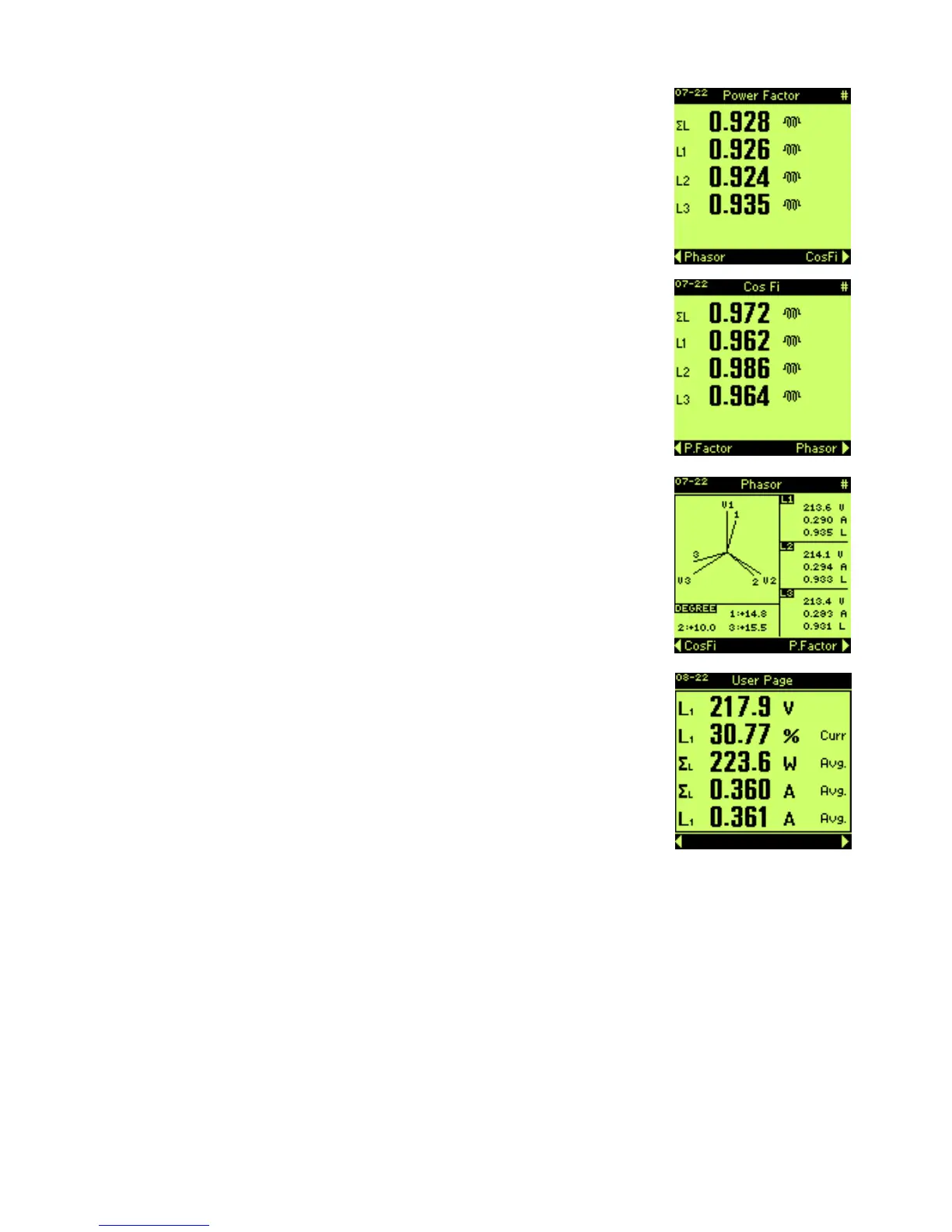

Variable reading phase power factor
• (P.F.) three phase system power factor [ΣPF]
• (P.F.) power factor L1 [PF
1
]
• (P.F.) power factor L2 [PF
2
]
• (P.F.) power factor L3 [PF
3
]
Variable reading phase cosϕ
• (cosϕ) three phase system cosϕ [Σcosϕ]
• (cosϕ) cosϕ L1 [cosϕ
1
]
• (cosϕ) cosϕ L2 [cosϕ
2
]
• (cosϕ) cosϕ L3 [cosϕ
3
]
Phasor
Fresnel diagram.
Phase angles in degree, voltage, current and PF for each line.
User page
The user can define in the setup menu (General-User Page) the variables
to display in this page.
