Controller serial port com2 is being used to write the ladder logic to the controller. It is
recommended, therefore, that the settings for com2 not be modified at this time. Any changes to the
com2 settings will disrupt the program download and cause a serial communication failure.
3.9 Program Ladder Logic
Program the ladder logic code for your application. Refer to the TelePACE Ladder Logic User
Manual for more information.
3.10 Configure Monitor List
Select Edit – Monitor List and add the registers that are to be monitored to the Monitor Addresses
list on the right side of the dialog. This is accomplished, by either selecting addresses from the
Addresses in Use list, and then selecting the Addresses >> button, or by entering a range of
consecutive registers into the First Register and Last Register boxes, and then selecting the
Range>> button.

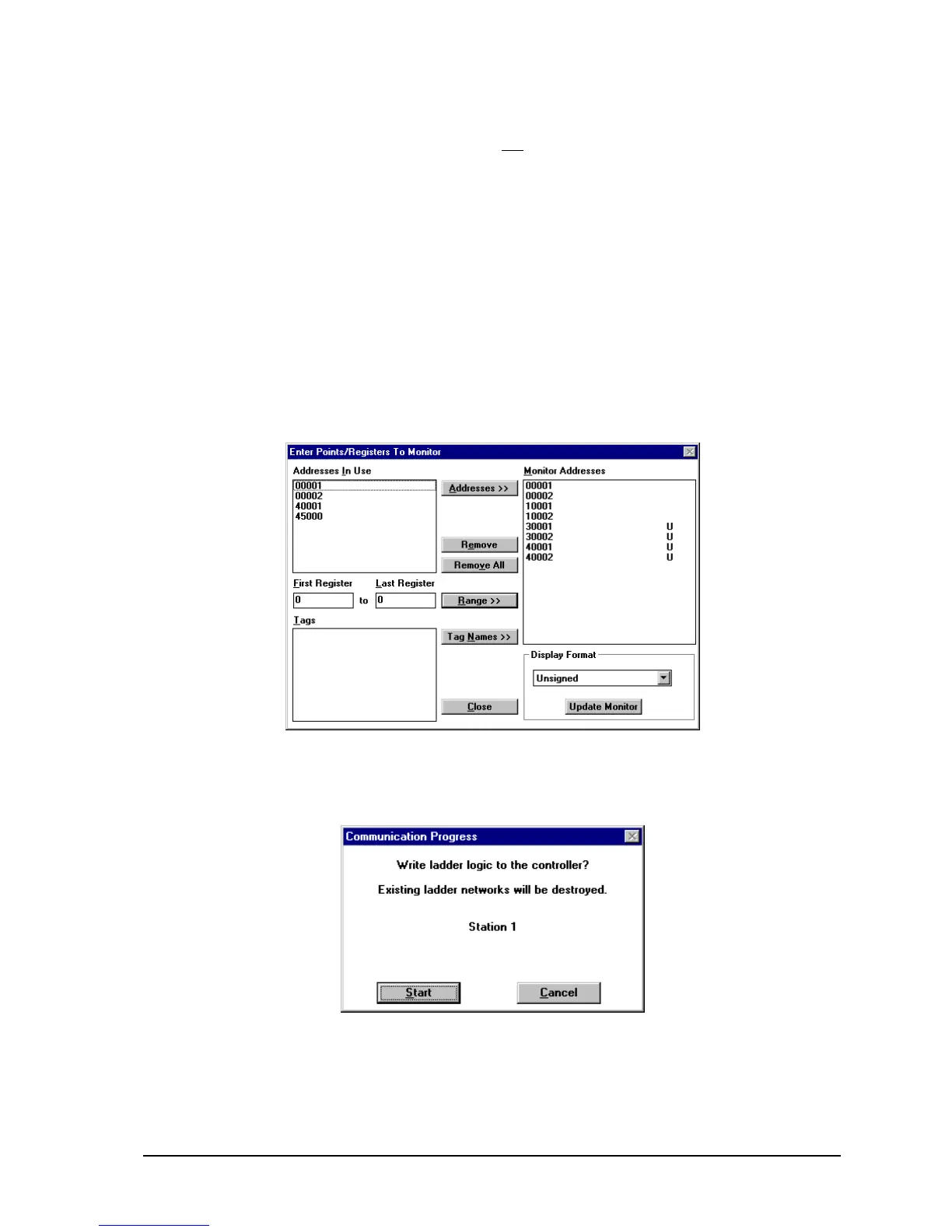

A completed Monitor List may appear like this:
3.11 Write Ladder Logic to the Controller
Select Communications – Write to Controller and write the ladder logic to the controller by
selecting Start from the dialog.
3.12 Monitor On Line Mode
Select Activity – Monitor Online and follow the screen prompts:
To Log On to the Controller, select Start.
