Control Microsystems SCADAPack Micro 16 User Manual

SCADAPack Micro 16 Quick Start Guide
October 19, 2007
8

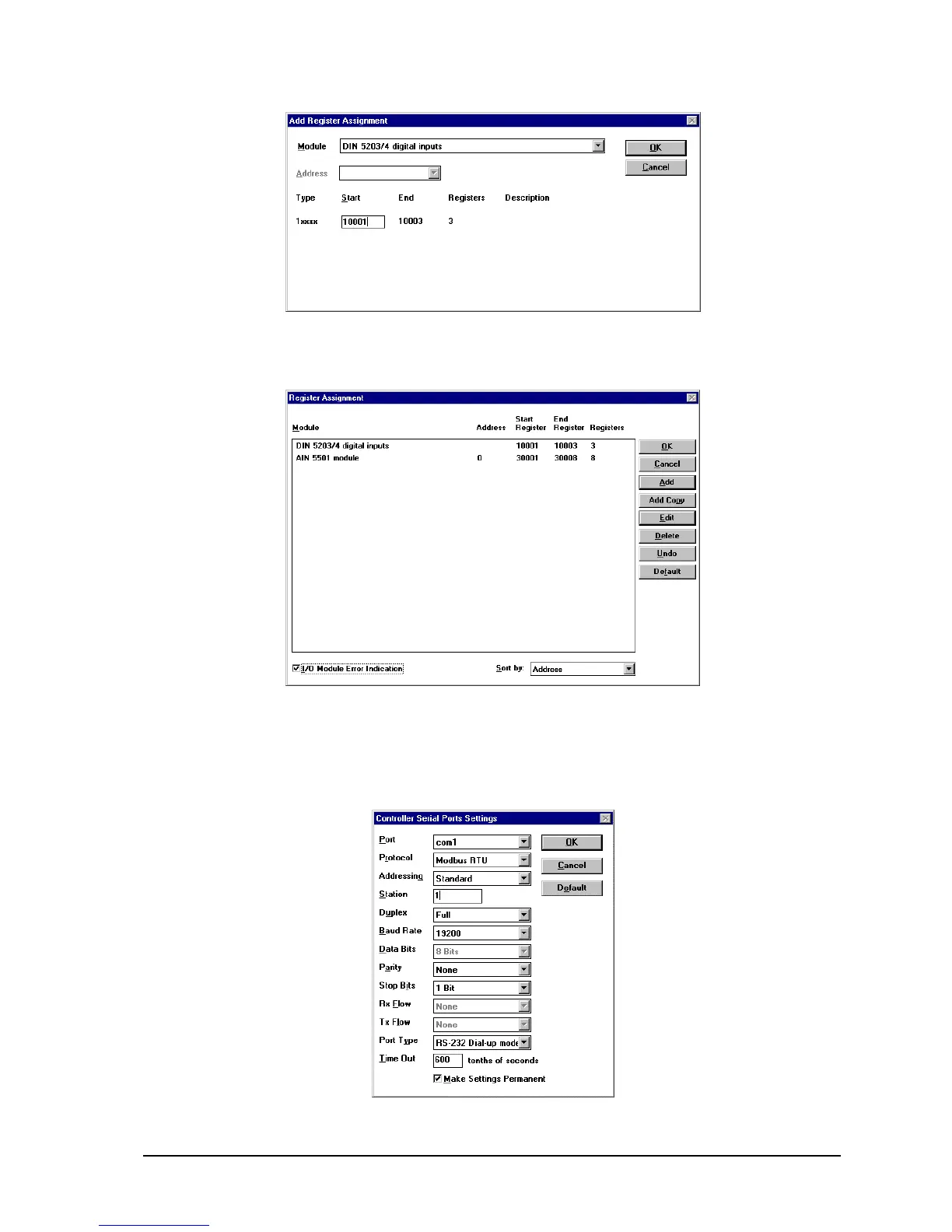

The following example is a completed Register Assignment for a TeleSAFE Micro 16 controller
with an on-board DIN 5203/4 digital inputs module and an AIN 5501 analog input module,
addressed as 0.
3.8 Configure Controller Serial Ports
Select Controller – Serial Ports and modify the settings for com1, if applicable.
The following example shows how com1 would be programmed to communicate via an external
dial-up modem.

Control Microsystems SCADAPack Micro 16 Specifications

General

Model	SCADAPack Micro 16
Analog Inputs	16
Digital Inputs	16
Analog Outputs	4
Output Channels	4
Power Supply	12-24 VDC
Operating Temperature	-40°C to 70°C
CPU/Processor	32-bit
Communication Protocols	DNP3
