The setting of Pr 05 automatically sets up the drives configuration.
In all of the settings below, the status relay is set up as a drive healthy relay:
No Function Range Defaults Type
05 Drive configuration
AI.AV, AV.Pr, AI.Pr, Pr, PAd,
E.Pot, Torq, Pid, HUAC
AI.AV RW
A change to Pr 05 is set by pressing the MODE key on exit from parameter edit mode.
The drive must be disabled, stopped or tripped for a change to take place. If Pr 05 is
changed while the drive is running, when the MODE key is pressed on exit from
parameter edit mode, Pr 05 will change back to its previous value.
NOTE
M
M
Configuration Description
AI.AV Voltage and current input
AV.Pr Voltage input and 3 preset speeds
AI.Pr Current input and 3 preset speeds
Pr 4 preset speeds
PAd Keypad control
E.Pot Electronic motorised potentiometer control
Tor Torque control operation
Pid PID control
HUAC Fan and pump control
T5
T6
OK Fault

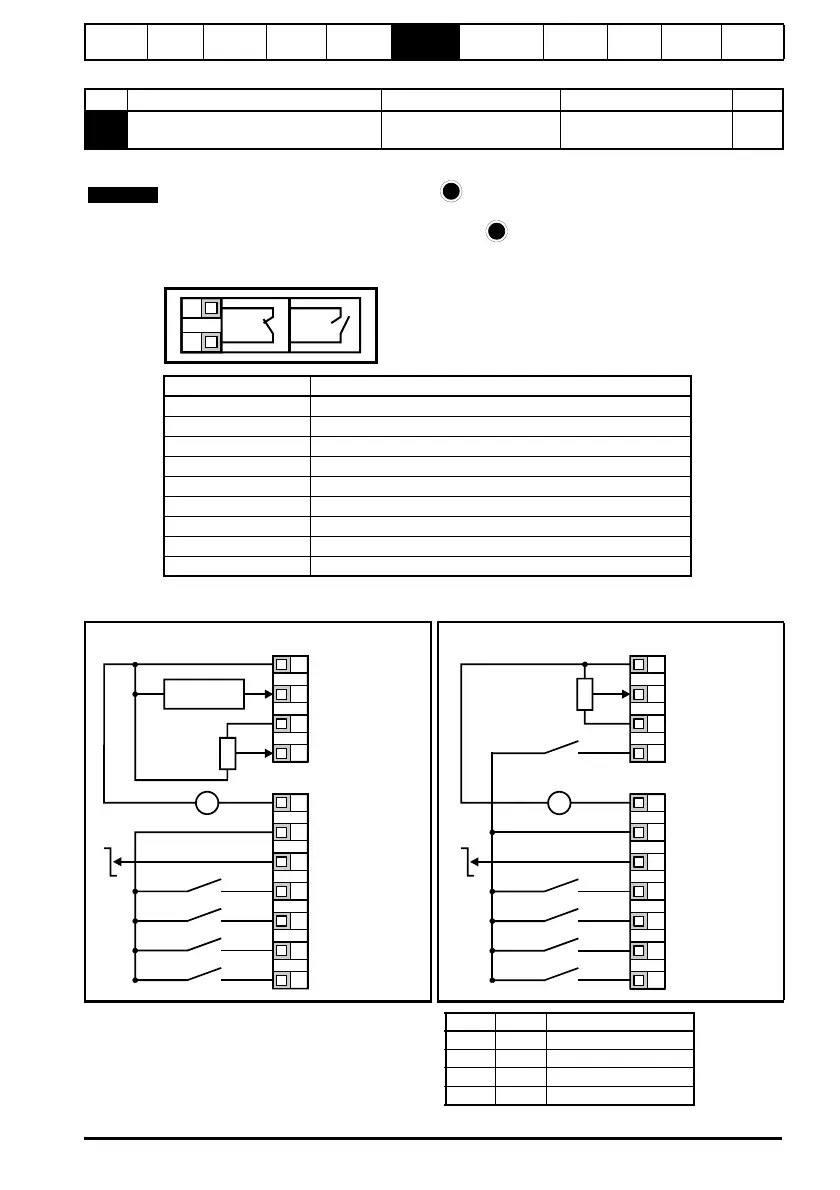

Figure 6-1 Pr 05 = AI.AV Figure 6-2 Pr 05 = AV.Pr
T1
T2
T3
T4
0V
Remote current speed
reference input (A1)
+10V reference output
Local voltage speed
reference input (A2)
B1
B2
B3
B4
B5
B6
B7
+24V output
Drive Enable/Reset
(USA: Not stop)
Run Forward
(USA: Run)
Run Reverse
(USA: Jog)
Local (A2)/Remote (A1)
s
eed reference select
Remote speed
reference input
V
_
+
10k
(2kmin)
+24V
0V
Analog output
(motor speed)
Digital output
(zero speed)
0V
Local voltage speed
reference input (A1)
+10V reference output
+24V output
Drive Enable/Reset
(USA: Not stop)
Run Forward
(USA: Run)
Run Reverse
(USA: Jog)
V
_
+
+24V
0V
EUR
nalog output
(motor speed)
Digital output
(zero speed)
Reference select
Reference select
10k
(2kmin)
T1
T2
T3
T4
B1
B2
B3
B4
B5
B6
B7
T4 B7 Reference selected
00 A1
0 1 Preset 2
1 0 Preset 3
1 1 Preset 4
To Next Page
