Commander SK Getting Started Guide 35
Issue Number: 1 www.controltechniques.com
Safety
Information
Rating
Data
Mechanical
Installation
Electrical
Installation
Keypad and
Display
Parameters
Quick Start
Commissioning
Diagnostics Options
Parameter
List
UL Listing
Information
7 Quick Start Commissioning
This procedure is written from default parameter settings as the drive would be
delivered from the factory.
7.1 Terminal control

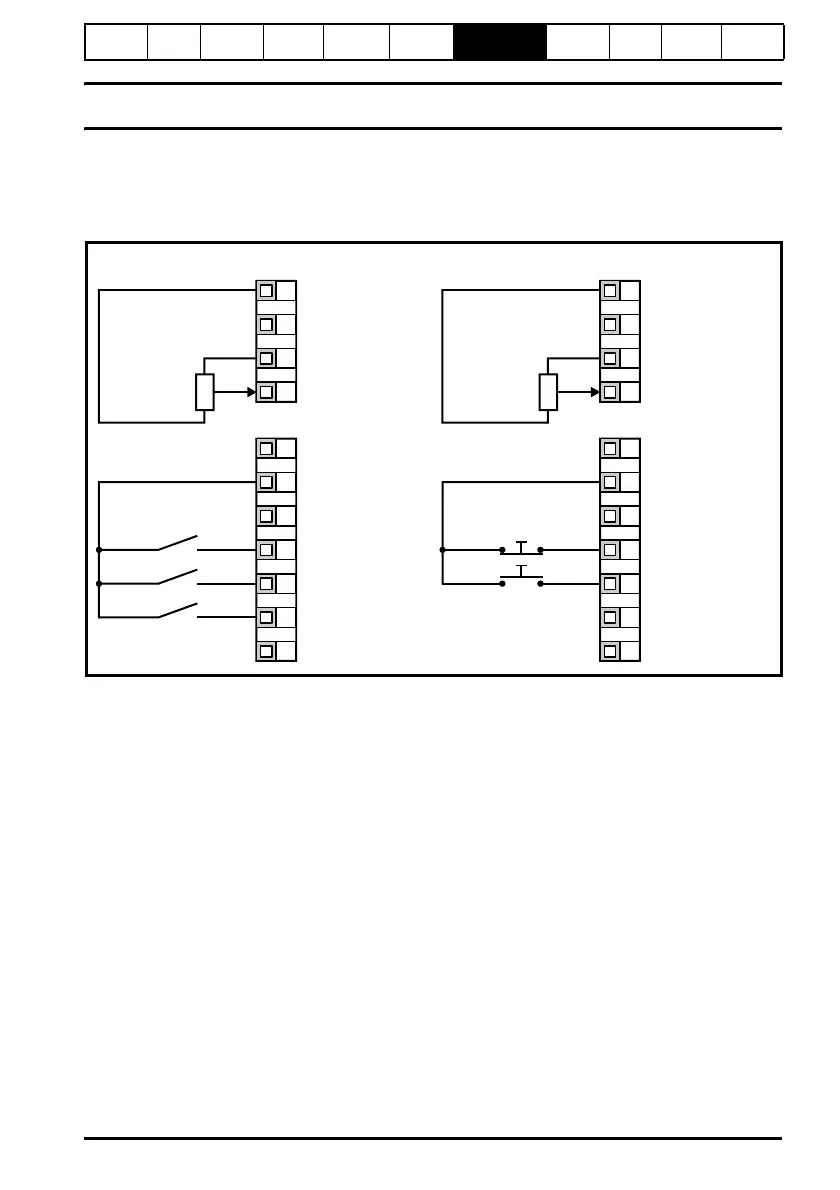

Figure 7-1 Minimum required control terminal connections
0V
Remote current speed
reference input (A1)
+10V reference output
Low voltage speed
reference input (A2)
+24V output
Drive Enable/Reset
Run Forward
Run Reverse
Local (A2)/Remote (A1)
speed reference select
10k
(2kmin)
EUR U
S
A
Analog output
(motor speed)
Digital output
(zero speed)
Speed
potentiometer
0V
Remote current speed
reference input (A1)
+10V reference output
Low voltage speed
reference input (A2)
+24V output
Not Stop
Run
Jog
Local (A2)/Remote (A1)
speed reference select
10k
(2kmin)
Analog output
(motor speed)
Digital output
(zero speed)
Speed
potentiometer
T1
T2
T3
T4
B1
B2
B3
B4
B5
B6
B7
T1
T2
T3
T4
B1
B2
B3
B4
B5
B6
B7
