Modbus RTU Module Installation
4 Installation
CAUTION
Remove mains and control voltage from the soft starter before attaching or
removing accessories. Failure to do so may damage the equipment.

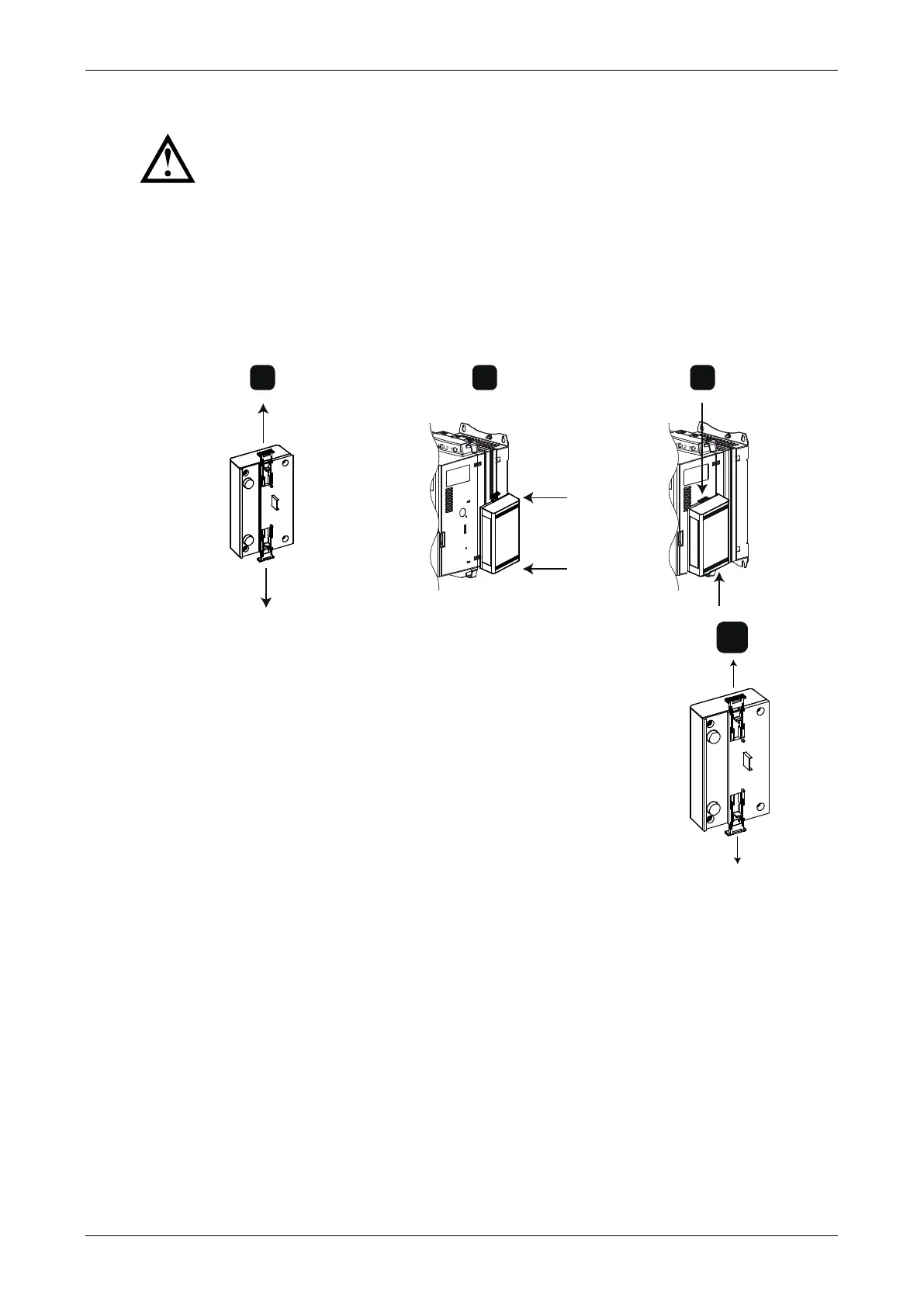

4.1 Installation Procedure
1. Remove control power and mains supply from the soft starter.
2. Fully pull out the top and bottom retaining clips on the module. [A]
3. Line up the module with the comms port slot. [B]
4. Push in the top and bottom retaining clips to secure the module to the starter. [C]
5. Apply control power to the soft starter.
A B C
10178.C
To remove the module:
1. Take the module off-line.
2. Remove control power and mains supply from the soft
starter.
3. Disconnect all external wiring from the module.
4. Fully pull out the top and bottom retaining clips on the
module. [A]
5. Pull the module away from the soft starter.
03550.C
A
