UD70/MD29 Installation Guide 4
Issue Number: 3 www.controltechniques.com

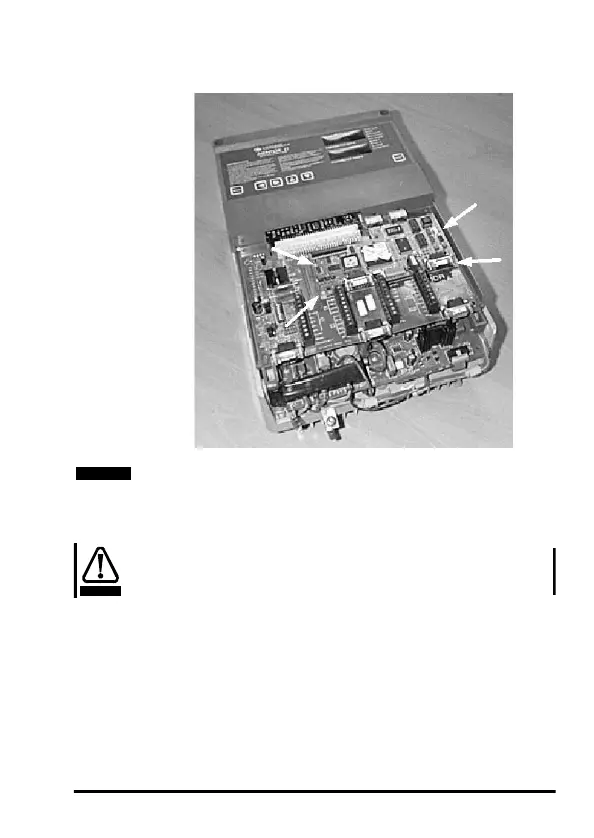

• Tilt the board to horizontal to engage the rest of the pins. Press firmly
downwards to firmly fix the MD29 to the header and 4 mounting pillars.
Take care when locating the board onto this connector - do not force it on.
Excessive force may bend and break the pins of the header.
When removing an MD29, unsnap the MD29 from the pillars before gently working
the MD29 off the header. Do not tilt the MD29 excessively to one side, as this may
bend and break the end groups of pins on the header.
Do not attempt to remove the MD29 while the Mentor II is still powered up, as
this may cause damage to the Mentor II.
NOT E
WARNING
