1.2 Mentor II and MD29/MD29AN
The MD29 is fitted onto the 40-way pin header (PL1) on the MDA2B circuit board.
The supplied mounting pillars should be attached to the MDA2B on the Mentor II.

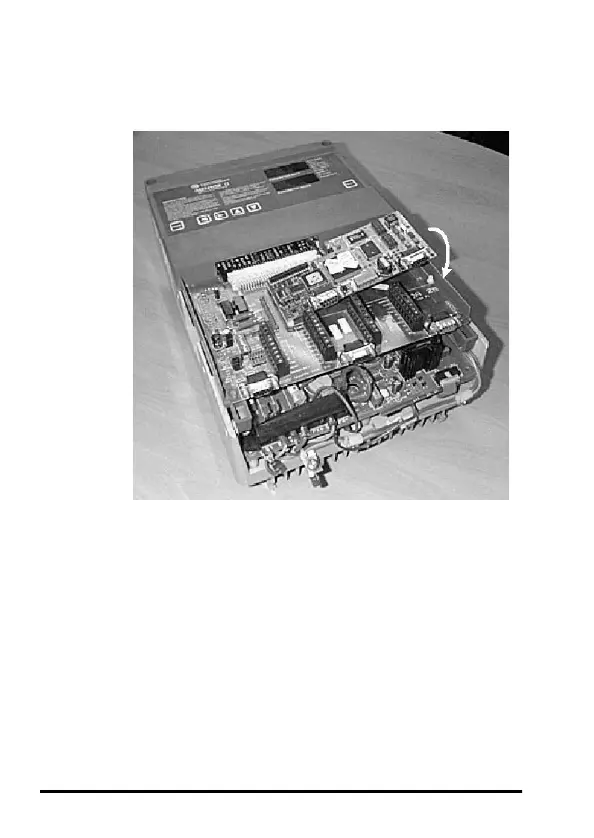

• Tilt the MD29 at an angle and locate the first few pins into the MD29 header.
