Control Techniques Unidrive M700 User Manual

www.controltechniques.com14
Expanded I/O

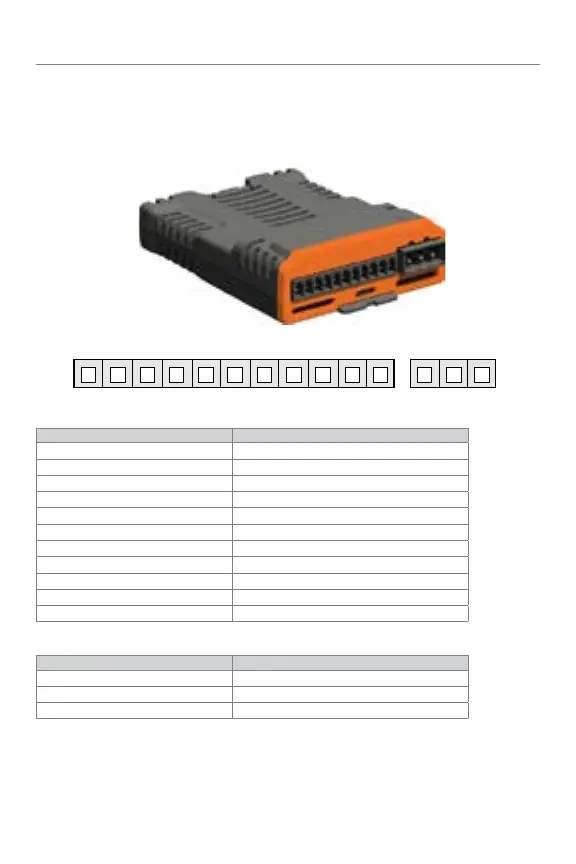

SI-I/O system integration module
This option increases the number of I/O points on a drive. All connections
from the option module to the drive are made via the drive connector.
PL1 Function
T1 0V common
T2 Digital input/output 1
T3 Digital input/output 2
T4 Digital input/output 3
T5 Digital input/output 4
T6 0V common
T7 Analog input 1/digital input 5
T8 Analog input 1/digital input 6
T9 Analog input 1/digital input 7
T10 0V common
T11 Analog input 1/digital input 8
11 way pluggable screw connector
PL2 Function
T21 Relay 1
T22 Relay common
T23 Relay 2
3 way pluggable screw connector
PL1
1 2
3 4 5
6 7
8
9
10 11
PL2
21
22
23
For further information see the SI-I/O User Guide.
