Control Techniques Unidrive M700

www.controltechniques.com 5
Terminal
Induction Servo / PM
AB
Pr 03.038 = 0
Endat
Pr 03.038 = 8
AB Servo
Pr 03.038 = 3
1 A DATA A
2 A\ DATA\ A\
3 B CLK B
4 B\ CLK\ B\
5 Z Freeze Z
6 Z\ Freeze\ Z\
7 Asim Out U
8 Asim\ Out U\
9 Bsim Out V
10 Bsim\ Out V\
11 Zsim Out W
12 Zsim\ Out W\
13 +V (power supply output)
14 0V
15 Thermistor

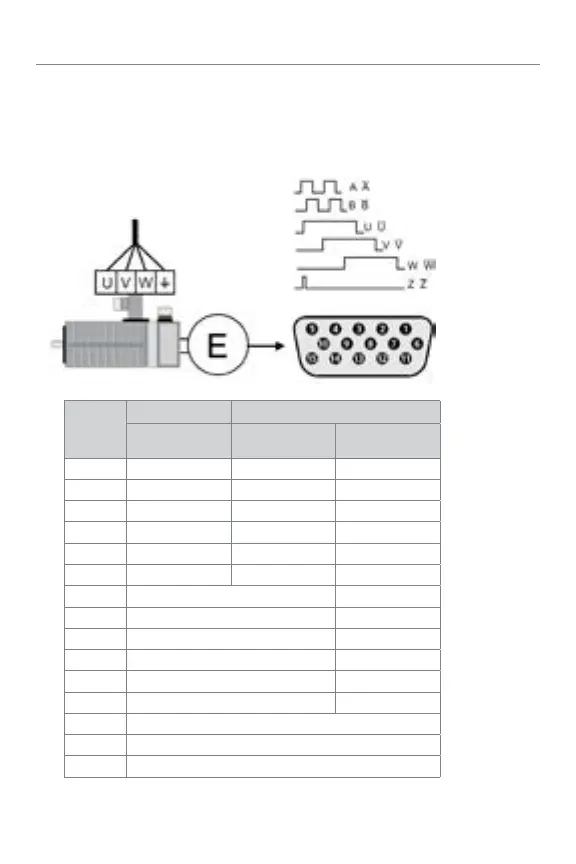

Encoder Wiring
Encoder connector 15-pin D-type as standard on
Unidrive M700/M701/M702
Encoder shielding connected to drive 0V and encoder 0V
For further information see the Unidrive M700/M701/M702 Control User Guide.
