Installation
Mounting the Thermostat Back-cover
• The back-cover should be mounted horizontally with the
terminals on the left side.
• Thread the existing wiring through the big center hole
from the back and set the back-cover horizontally on the
wall.

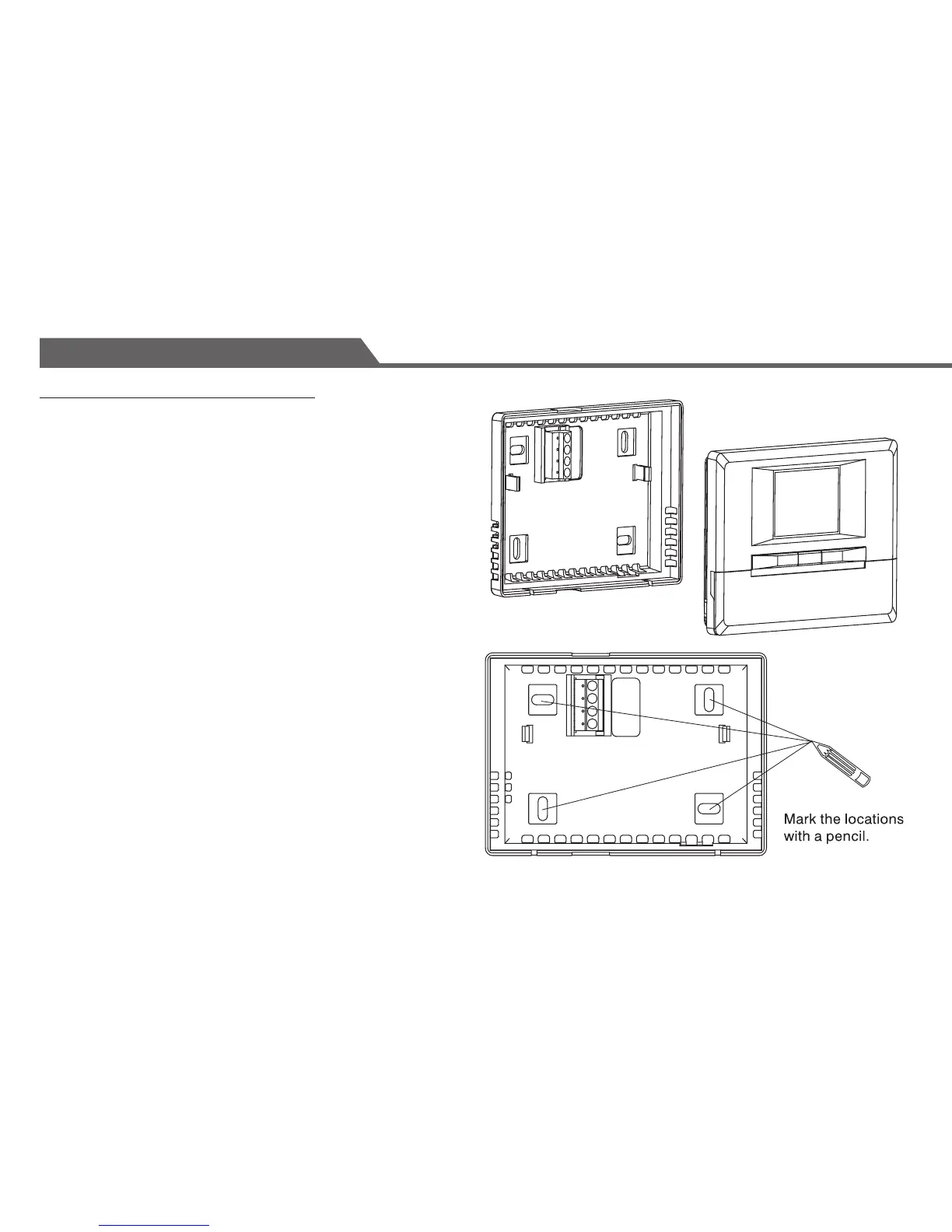

• Select two appropriate mounting holes and mark the
locations with a pencil. If necessary, use a level to
make sure the thermostat is leveled.
• Remove the back-cover from the wall and drill two 3/16
inch holes in the marked screw positions. Insert the
wall-anchors into the holes completely. If necessary,
use a hammer to tap-in lightly.
• Mount the back-cover with the two screws to the wall.
Make sure the metal terminals are on the left side.
To Next Page
