CONVECTAIR Piccolo - 3- Installation and Mounting

5.

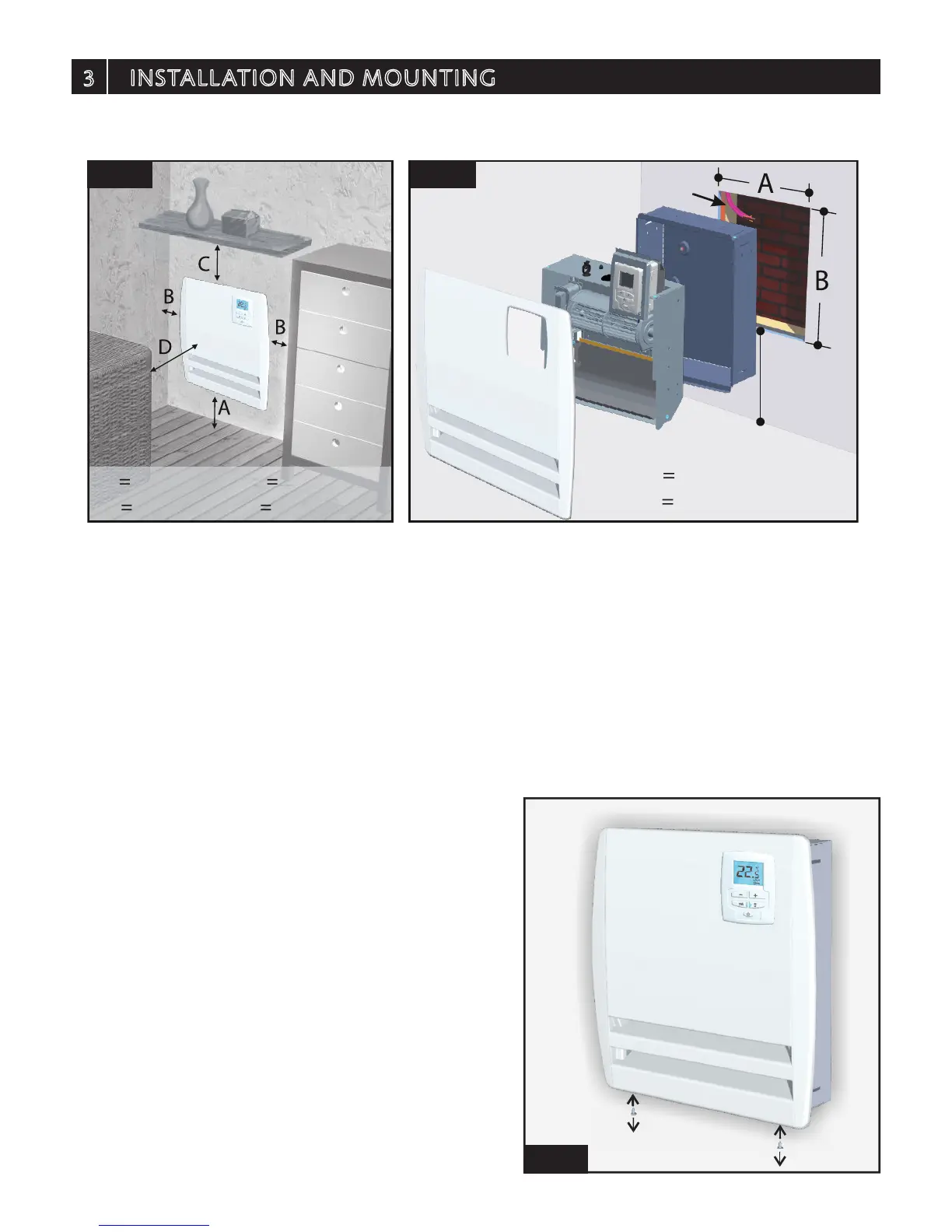

3 installation and Mounting
- Identify where you want to install the heater, providing sufcient clearance around the
unit.
- The PICCOLO heater is partially enclosed and clearance restrictions must be respected.
The heater should be installed no lower than 12 in. (30 cm) from the oor. Leave a
minimum clearance of 4 in. (10 cm) on each side of the heater, 8 in. (20 cm)and 24 in.
(60 cm) in front for a proper air circulation.
- Clear a rectangular opening of 14
5/8
in. (37.2 cm) high, 12
3/8
in. ( 31.5 cm) wide and
3
1/2
in. ( 9 cm) in deep between the wall studs (Fig. 3).
- Make sure that the electrical wires (and the pilot wire if needed) come out of the top left
corner of the wall opening (Fig.3).
- The heater can be dismantled in 3 pieces (Fig.3) : the front panel (1), the ventilation
block and panel controls (2)and the
enclosure box (3).
To dismantle the heater :
- Take off the facade by removing the 2
screws located at the bottom of the facade
(Fig. 4).
- Take off the ventilation block by removing
the 2 screws (Fig. 5, A) and slide the
ventilation block to clear the hooks (Fig. 5,
B).
Fig 4
Fig 2 Fig 3
A 12" (30cm) B 4" (10cm)
C 8" (20 cm) D 24" (60cm)
A 12"
3/8
(31,5 cm)
B 14"
5/8
(37,2 cm)
Electrical wire exit
12" / (30 cm) minimum
