6.

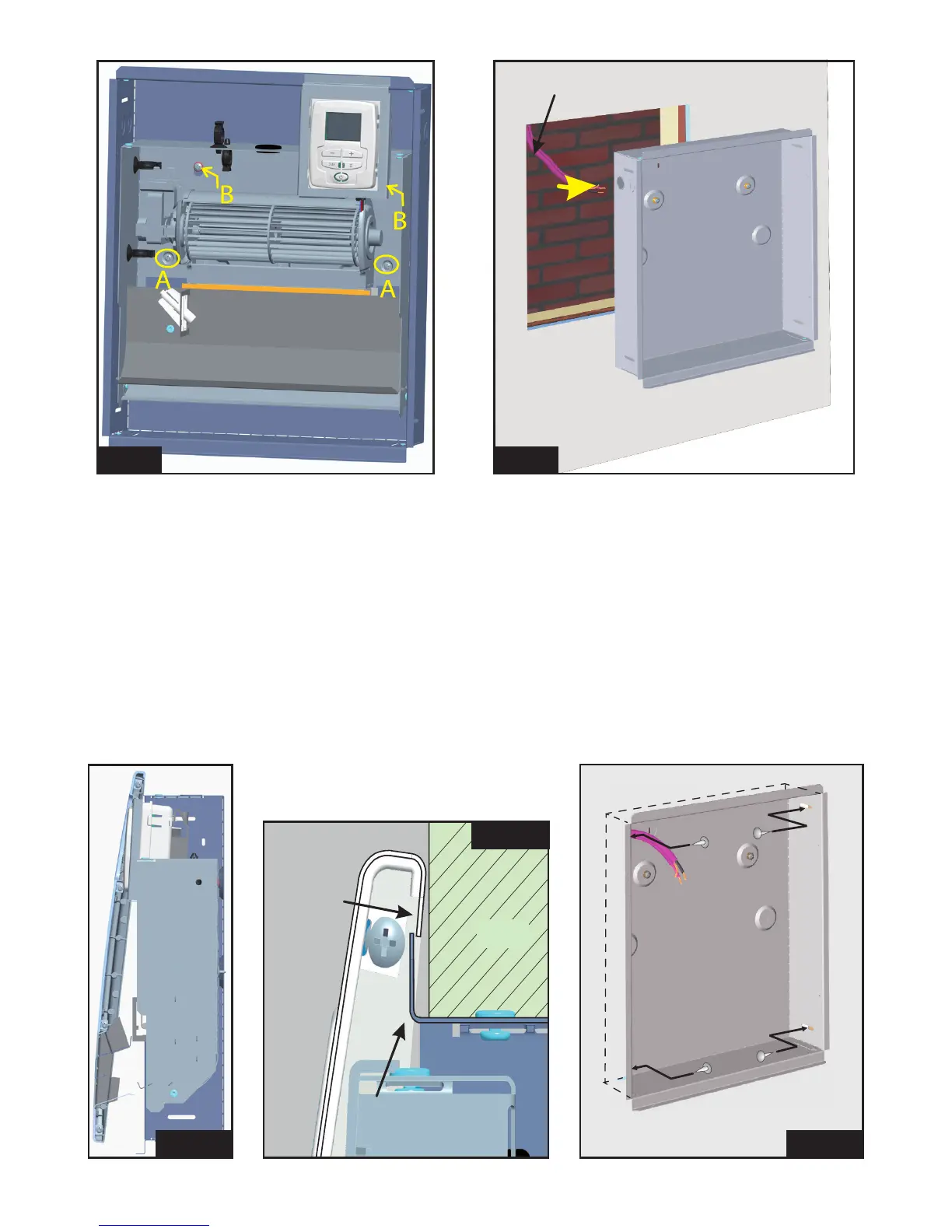

- Before placing the enclosure box inside the wall opening, remove the knock out and pass
the electrical wires (Fig.6), and the pilot wire if needed, using an appropriate bushing (
not included).
- Insert the enclosure box and secure it to the wall with appropriate hardware (Fig 7c)
having taken into account the reassembly of the facade. Indeed, leave approximately
1/8“ (3 mm) between the wall and the upper fold of the inner box to facilitate the assembly
of the facade (see Fig. 7a et 7b).
- Insert and hook the ventilation block and the control panel inside the enclosure box.
Secure the ventilation box with 2 screws (Fig.5).
Fig 5 Fig 6
Fig 7a
