7.
- Connect the electrical wires (see chapter 4 -Electrical connection, page 8).

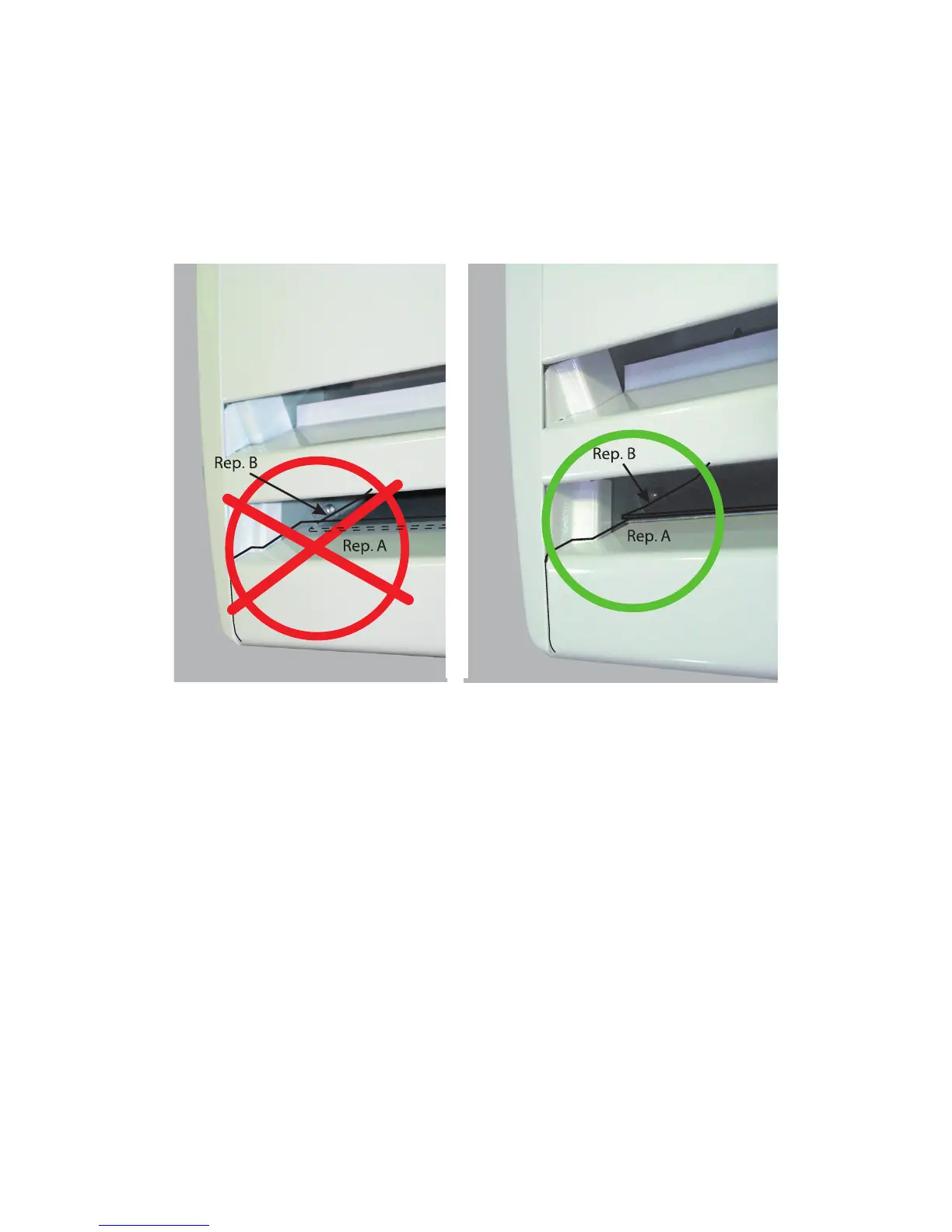

- When remounting the front facade, please make sure that the lower fold of the front
panel (Rep. A) is inserted below the deector of ventilation block (Rep.B), and this to
guarantee optimal performances.
- Place and hook the facade using the enclosure box top crease. Secure the facade with
2 screws.
WARNING : Do not pinch wires when closing the facade.
WRONG GOOD
