10 Steljes Audio . ConXeasy SWA401 User Guide
INSTALLATION
The SWA401 package includes a
pair of 0n-wall speakers. These are
easily mounted to any wall using the
included brackets, as shown in fig. 3.
To properly terminate the speaker, strip
about 5 to 6mm of insulation, exposing the
inner copper wire. Press the desired speaker
terminal and insert the stripped portion of the
speaker wire, as shown in fig. 4.
Be careful to terminate the positive and
negative conductors the same at the speakers
as you did at the SWA401-AMP amplifier.

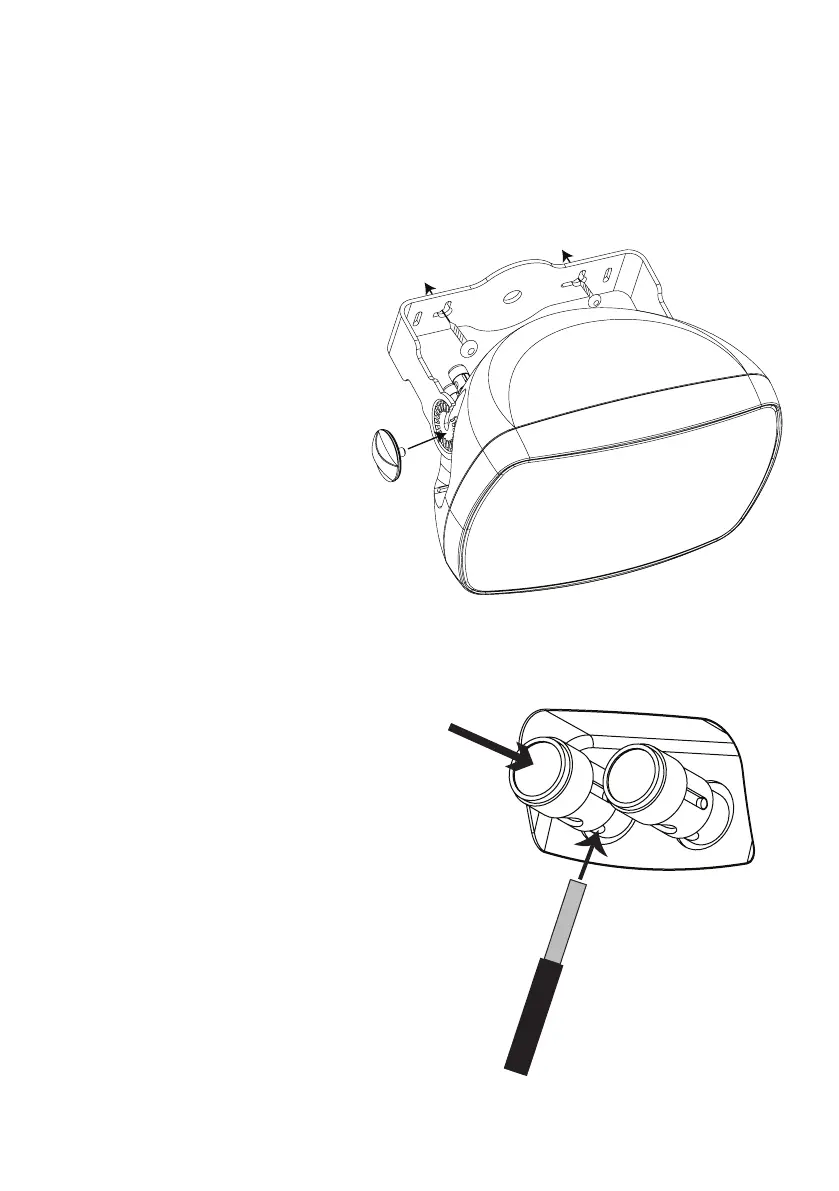

Fig. 3.
Fig. 4.
