Cookshack FEC300 - Smoker Illustration

19

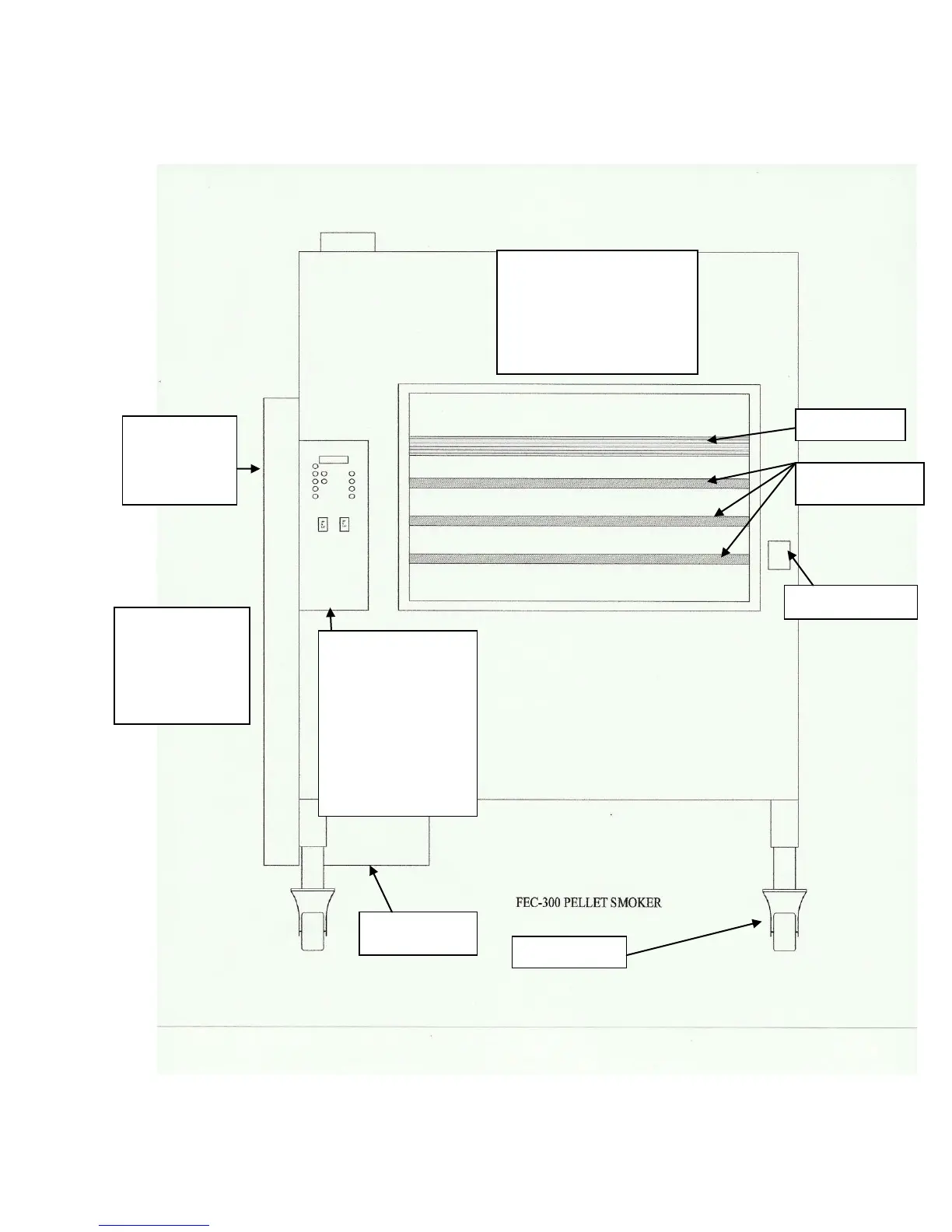

Smoker Illustration
Rotisserie shaft
Grill 3 per basket
PV004
Door switch PV366
Not shown
Door hinge PV105
Door closer PV570
Door seal PV303/PV299
Convection motor PV519
Fan blade inside PV540
Fan blade outside PV542
Rottisorie bearing PV250
Caster PV195
Rotisserie motor
PV513
Inside control panel
Switch PV361/364
Label Keypad LA152
Transformer PV627
Control Board PV687
Power Supply PV520
Relay PV631
Relay PV634
Relay PV682
Limit switch PV552
Temperature probe PV718
Power cord PV461
Drive chain with
offset link
PV586
PV587
PV588
Hopper
Latch PV166
Switch PV366
Auger motor PV514
Draft fan PV517
Igniter PV310
