COOLIUS Y10 - Machine Components Overview; Front and Rear Machine Views; Left and Right Machine Views

11COOLIUS Y10

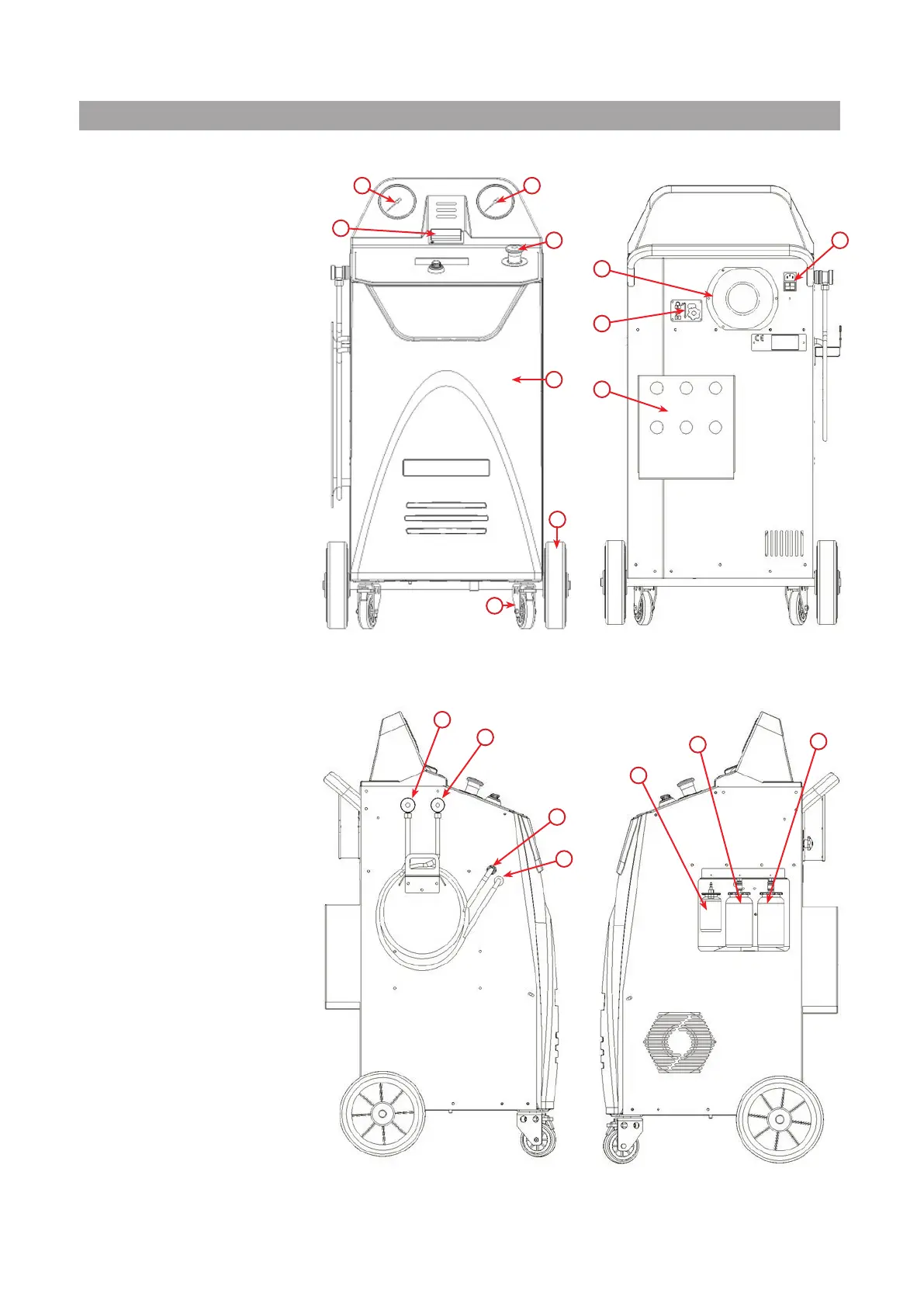

3.2.2 The machine
1 LP-pressure gauge
2 HP-pressure gauge
3 Printer
4 Emergency switch
5 Front cover
6 Rear wheel
7 Front wheel with brake
8 Ventilation Security System
inlet grid
9 Main switch
10 Transport safety of the
scale
11 Storage box for accesso-
ries
12 Container for UV leakage
additive 100ml
13 Container for new oil 250
ml
14 Container for absorbed oil
250 ml
15 LP-quick coupling
16 HP-quick coupling
17 LP-hose
18 HP-hose
1 2
5
7
6
4
3
g. 002 View Front
8
9
10
11
g. 003 View back
g. 004 View left
15
16
18
17
12
13
14
g. 005 View right
