COOLIUS Y10
3.2.3 Transport lock
The transport lock secures the scale of the internal refrigerant vessel and protects it from damage during
transport..
Attention! Damage of the scale during transport
The transport lock must be locked before transporting the A/C service unit.
Unlocking
Unscrew the star grip screw of the transport lock.
Raise the star grip screw, then move to the right and down to the unlocked position.
Retighten the star grip screw slightly.
locking
Unscrew the star grip screw.
Move the star grip screw upwards and then to the left to the locked position.
Retighten the star grip screw slightly.

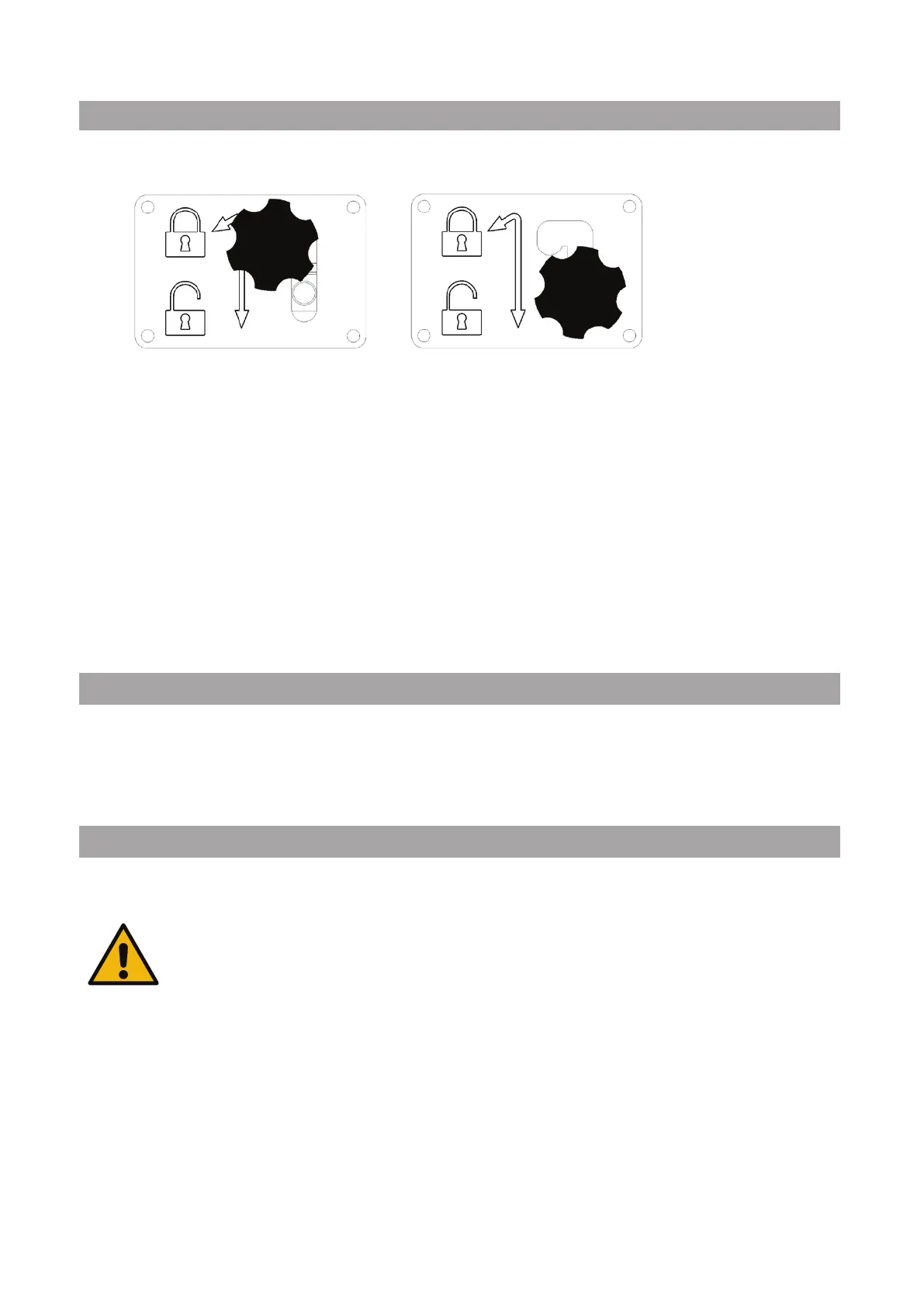

g. 007 Scale locked g. 008 Scale unlocked, workposition
3.3 Machine handling
In spite of the fact that the heaviest components have been assembled on the base in order to lower the
centre of gravity, it has not been possible to eliminate the risk of overturning completely.
The machine is moved on the four wheels.
On rough ground, the machine must be moved by tilting it and balancing the weight on the two rear wheels.
3.4 On/O and stopping
start-up: Move the main switch to the ON position (I)
Stopping: Move the main switch to the OFF position (O)
Attention! Damage to the machine.
Do not switch o the machine by unplugging the mains plug!
