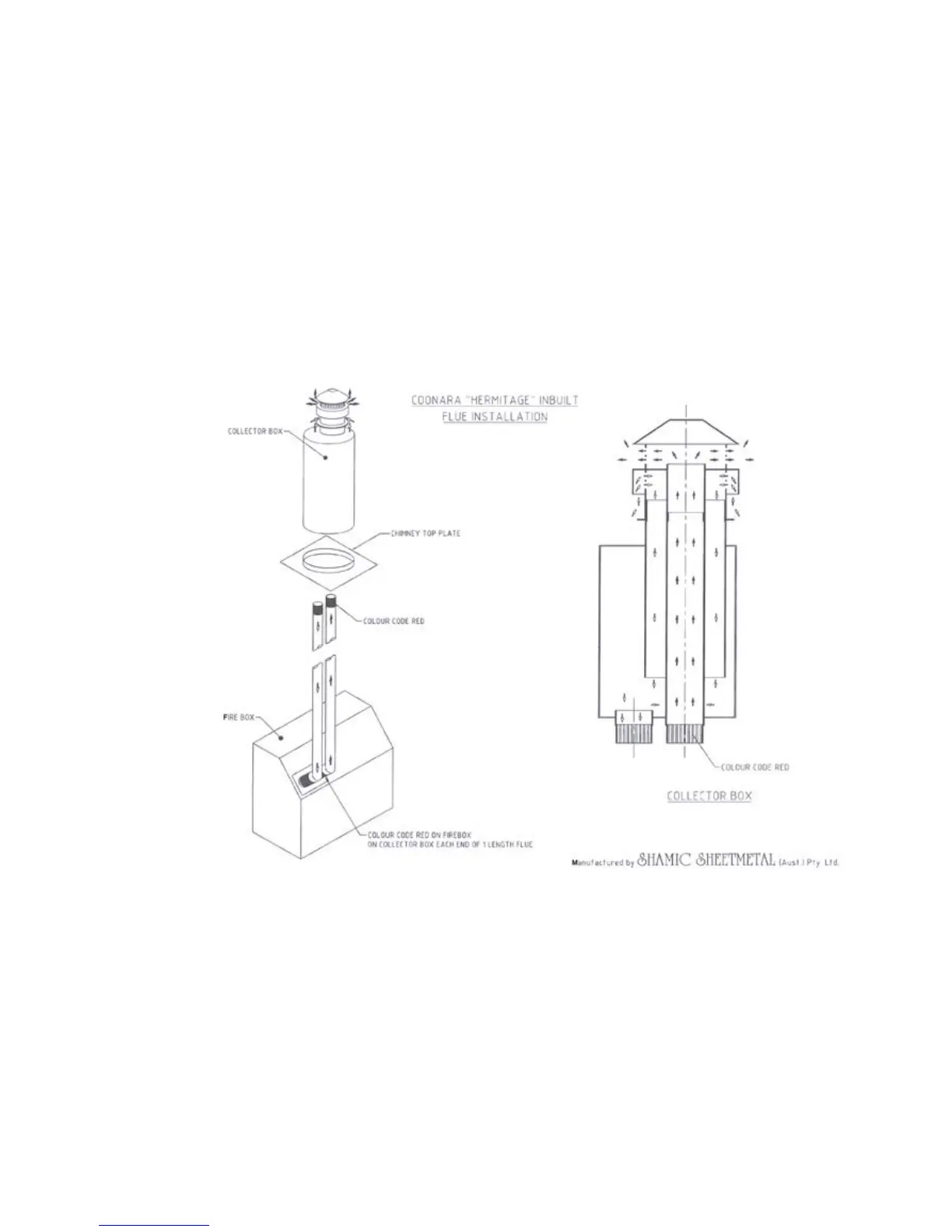

VERTICAL FLUE INSTALLATION
INBUILT MODEL
1. Connect flue terminal to both flexible flue pipes. The exhaust pipe is colour coded RED at
each end, the exhaust outlet on the heater body and the exhaust port at the flue terminal.
2. Feed both flexible pipes down the flue cavity.
3. Fix flue terminal securely to top of flue cavity and seal to prevent water entry. Seal with Hi
Temperature waterproof silicon sealant prior to cementing to chimney top, pop rivet circular
flange to base of collector box. (Chimney installation only).
4. Connect flexible flue pipes to the correct outlet at the heater body Exhaust being colour RED
