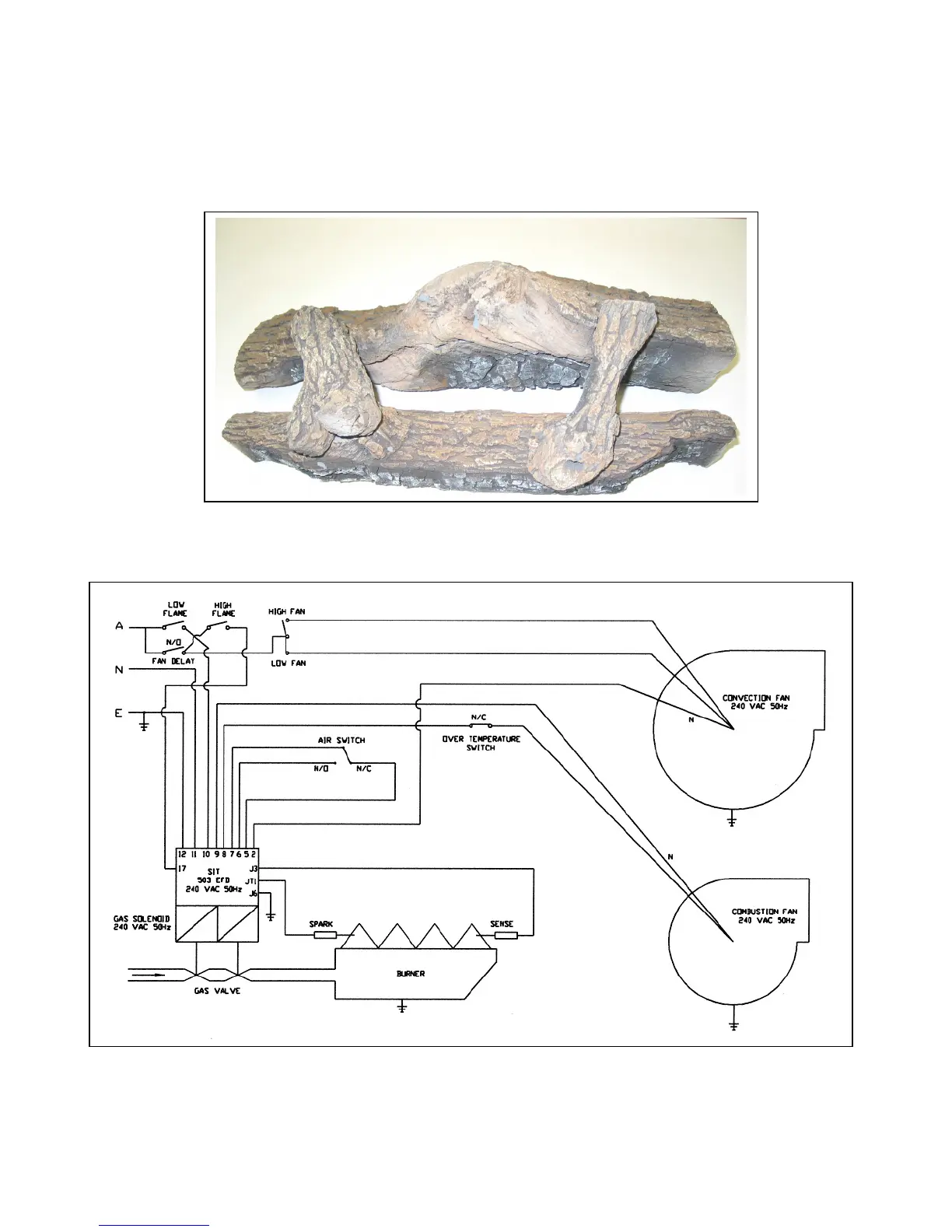

INSTALLATION OF LOG SET
1. Place the rear log on the top rear burner plate as shown.
2. Place front log on the front section of the burner.
3. Fit the cross logs (as illustrated below) to the pins located on the front and rear logs. Logs should
not touch the sensor or sparker.
Above diagram shows correct orientation of logs
WIRING DIAGRAM
GAS VALVE ADJUSTMENT
The gas valve pressure adjustments must be checked during installation, and if necessary corrected to
suit the gas type available. (See label inside of lower cover panel or this page for required pressure
settings).
