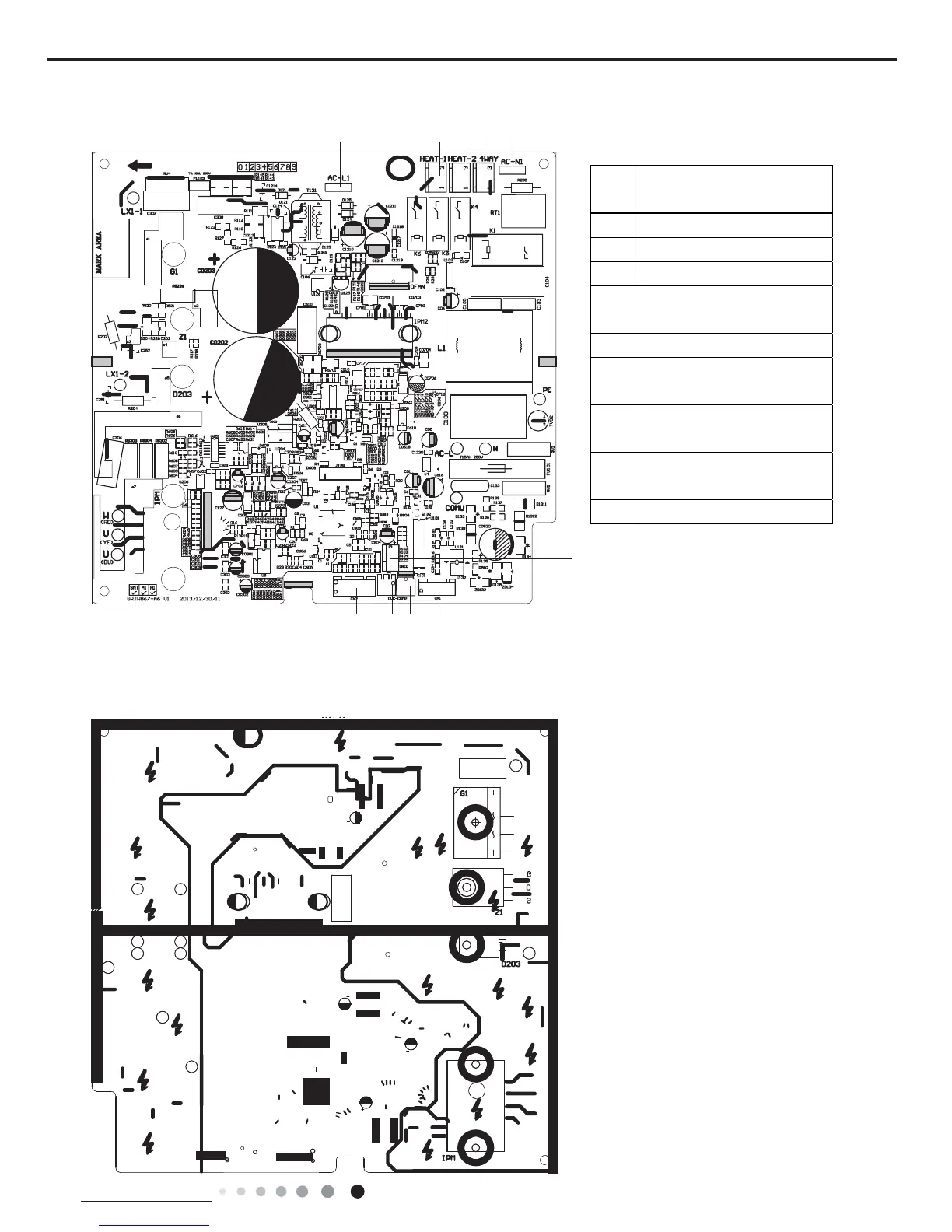

● Top view
● Bottom view
09K & 12K
1
Live wire input of Dred
communication plate
2
Heating belt 1
3
Heating belt 2
4 4-way valve
5
Neutral wire input of Dred
communication plate
6
Dred function terminal
7
Electronic expansion valve
terminal
8
Overload terminal of
compressor
9
Overload terminal of
compressor
10 Temperature sensor terminal
Outdoor Unit
