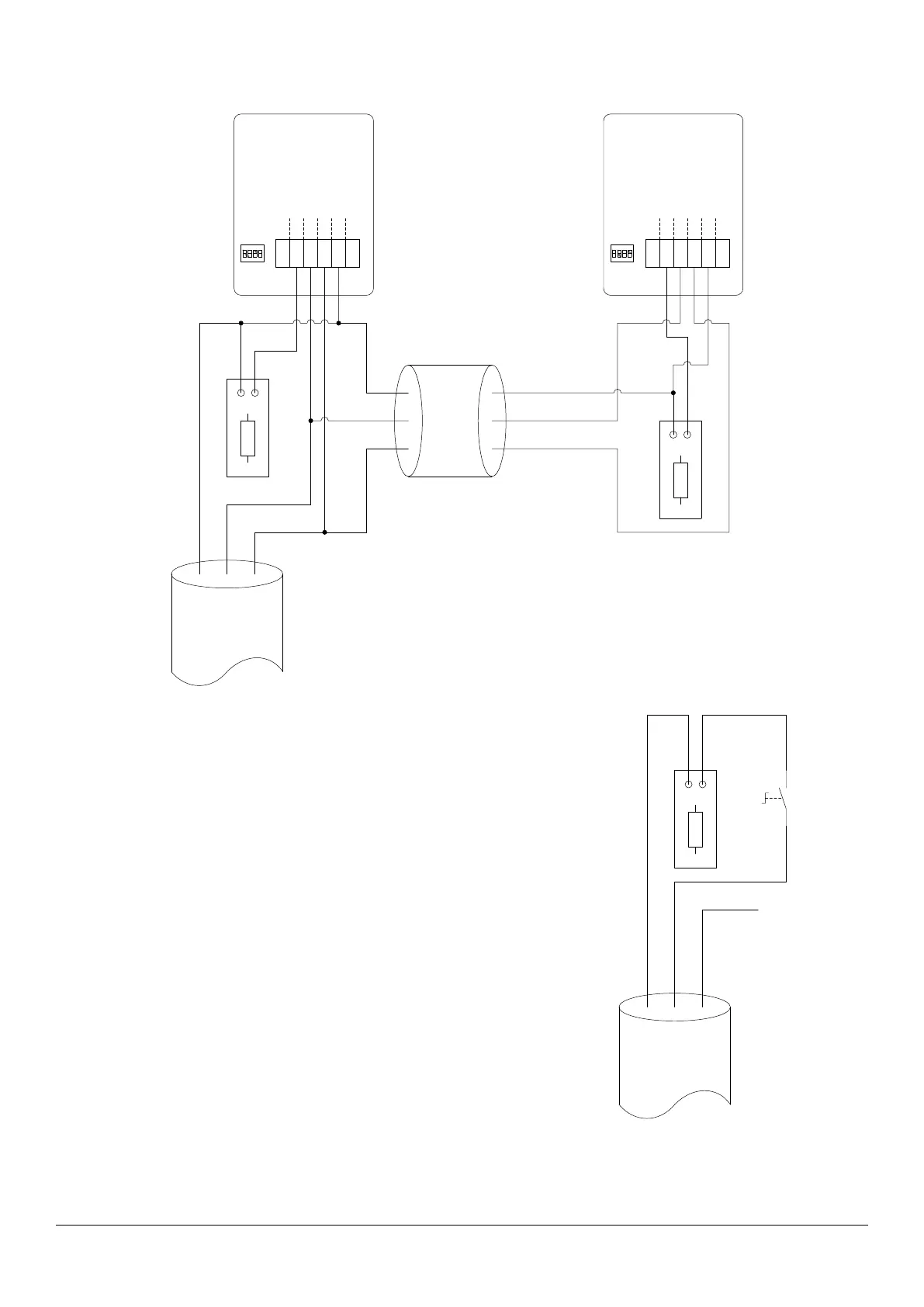

6.6 Deluxe Emergency Egress Button
6.7 Emergency Access Button / Fireman’s Emergency
Access
BROWN (1)
YELLOW / GREEN (2)
BLUE (3)
BROWN (1)
YELLOW / GREEN (2)
LINK CABLE
(3 CORE AS SUPPLIED)
CABLE TO CONTROL UNIT
(FITTED WITH 3 PIN CONNECTOR)
Dip switches to be set as below:
1 + 2 = Off
3 + 4 = On
NC C NO - + E
ON
1 2 3 4
RED BLACK YELLOW WHITE GREY
BLUE (3)
Dip switches to be set as below:
1 + 2 = Off
3 + 4 = On
NC C NO - + E
ON
1 2 3 4
RED BLACK YELLOW WHITE GREY
R1
82kΩ
ERBRM2
R1
82kΩ
ERBRM2
BROWN (1)
YELLOW / GREEN (2)
BLUE (3)
BLUE NOT CONNECTED,
MUST BE ISOLATED
CABLE TO CONTROL UNIT
(FITTED WITH 3 PIN CONNECTOR)
R1
82kΩ
ERBRM2
Firemans
Access
Switch
