5.3 Setting Motor Direction
 It is important that the motor directions are set before the system is powered up. This is to ensure that
the drive shaft is driven in the correct direction to raise or lower the system.

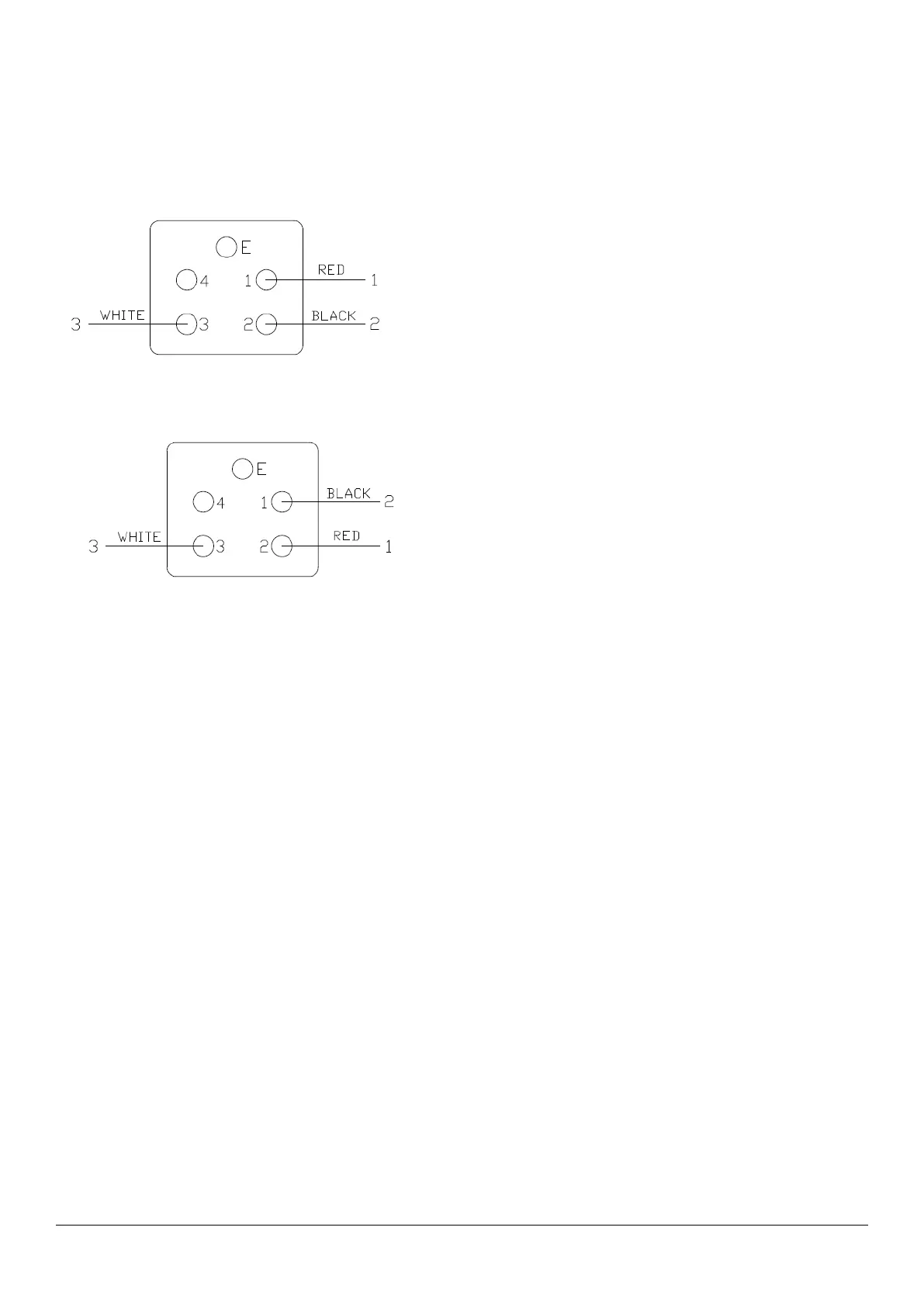

If the motor is descending in an anti-clockwise rotation: -
If the motor is descending in a clockwise rotation: -
