Technical Support Manual – 05/2018 Rel. 2.1.3 Page 35

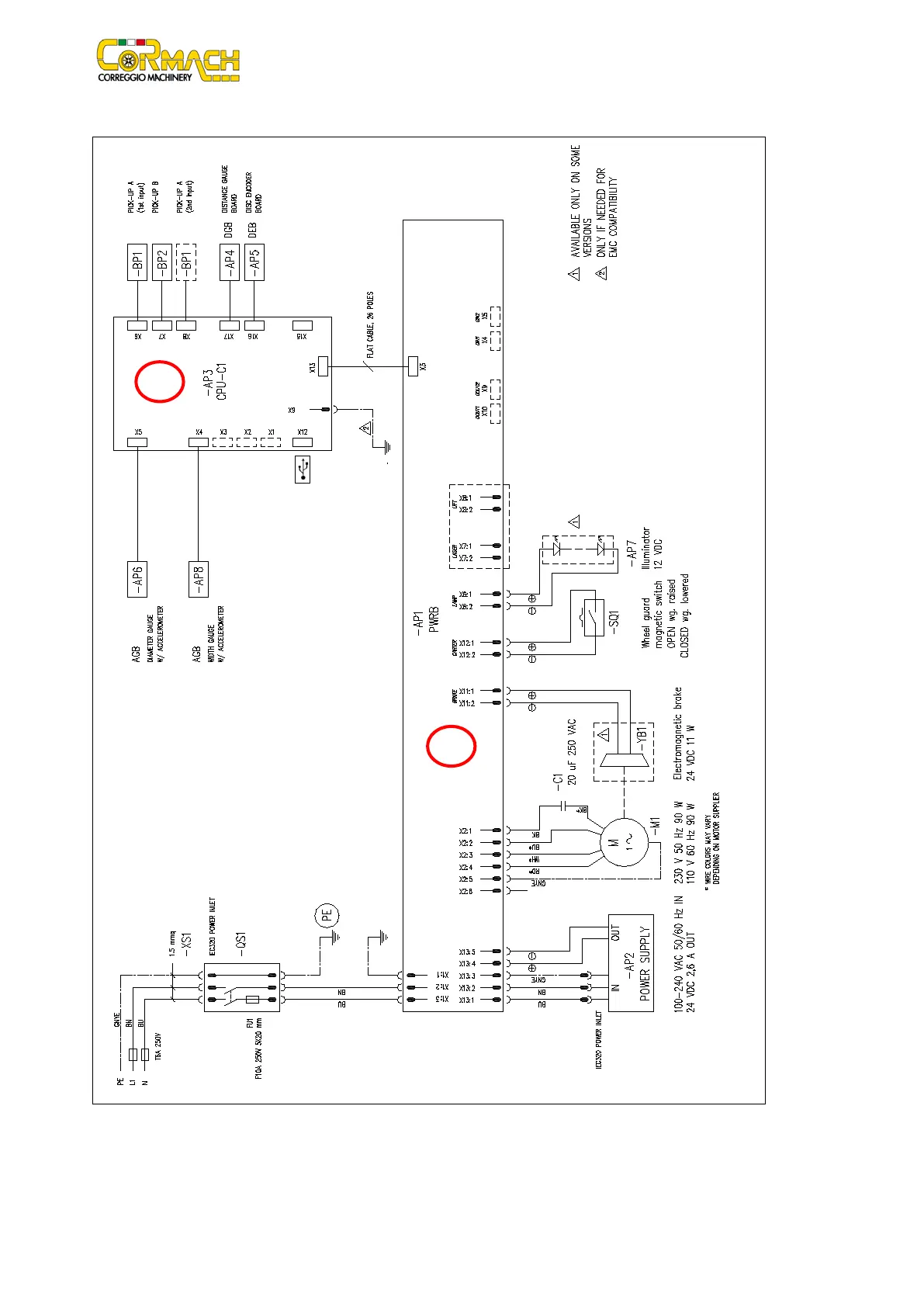

11. WIRING DIAGRAM
It is possible to order the following codes:
1 – Cod. 21201028: CPU C1C.X BOARD
2 – Cod. 21201019: PWRB2X POWER SUPPLY BOARD
1
2
