will slip away from the bucket and fall into the container;
•
Repeat the operation several times to fill the container;
CAUTION: When using the arm, make sure that the latter does not
accidentally collide with surrounding objects and check that there is
nothing in the range of action of the arm.
LIFTING THE CONTAINER (“HI-TIP”)
Upon request, the machine can be set up with a hydraulic device to lift the
container during unloading to allow unloading into containers or tanks with a
high edge, called “Hi-Tip”.
The system is equipped with a safety valve which, even in the event
of breakage of the hydraulic pipes, prevents accidental lowering of the
unit.
To unload the material, act as normal on the container tipper lever (as
indicated in the previous paragraph).
To unload, proceed as follows:
•
Position the machine on a flat surface or on ground that is firm and compact;
•
Raise the container to the desired height by pushing the lifting lever
forward;
•
Push the tipping lever of the container forward to allow the material to be
unloaded.

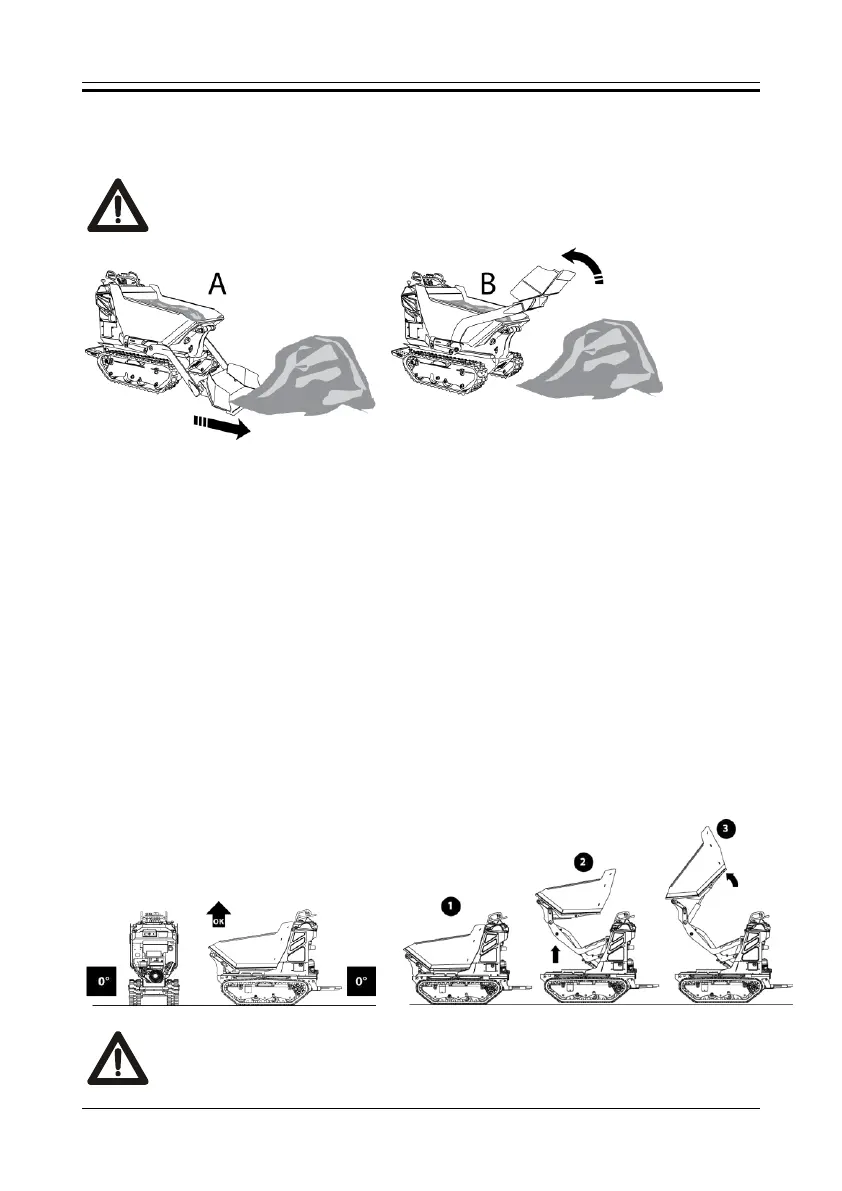

Fig. 40 - Position for high unload
HAZARD: Lift only on firm, compact and perfectly level ground
