WARNING: lift the machine by hooking it only by the eyebolts provided for
the purpose: anchoring to other points can cause breakage with consequent
falling of the machine and the possibility of serious damage to persons.

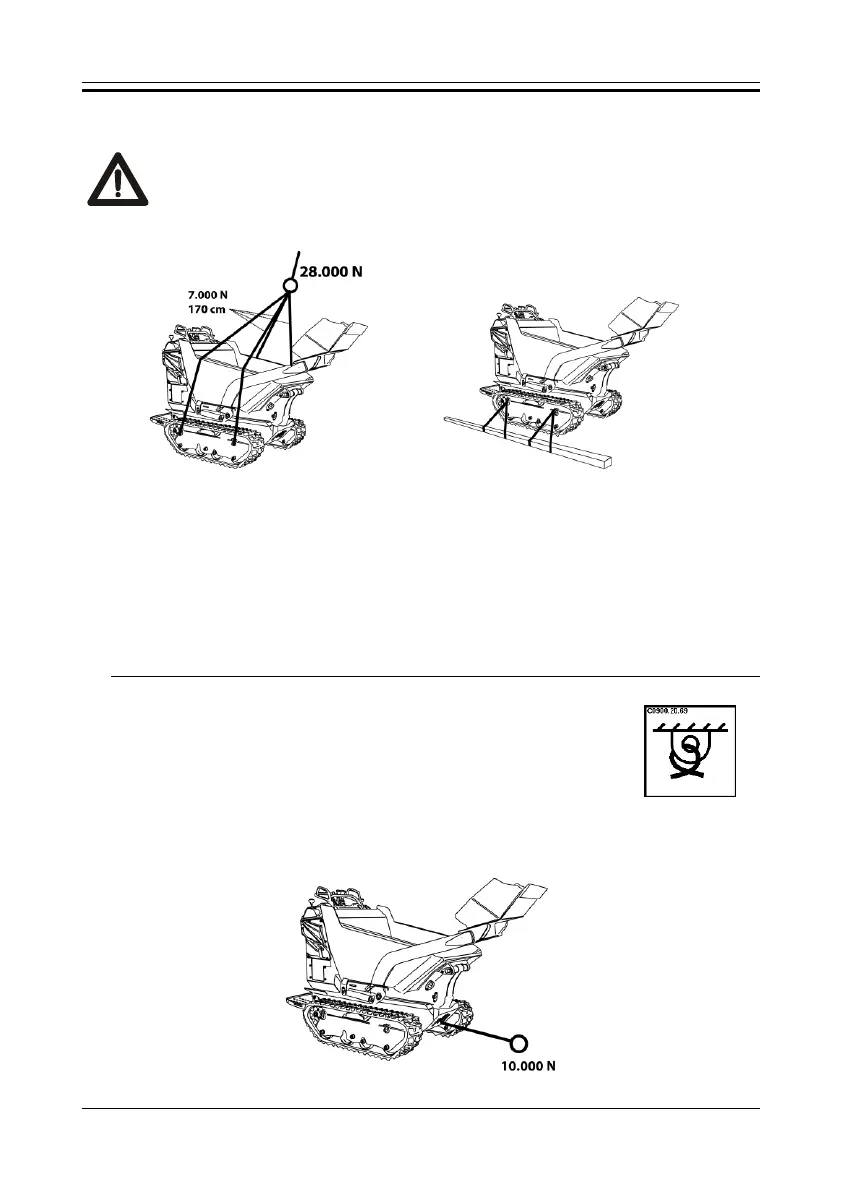

fig. 44 – Anchor points for
lifting.
fig. 45 – Anchor points for
transportation
•
Fasten it firmly to the platform of the means of transport by means of
sturdy CE approved tie rods, always connecting them to the points shown
as in figure 45.
•
2.11.
TOWING
The machine is equipped with tow hooks, located in the
lower part of the undercarriage, both front and rear (see fig.
47); if it is necessary to tow the machine, be sure to empty
the container.
Each anchor point for towing is highlighted by a plate
bearing the symbol shown in fig. 46 and can support a
traction force of approximately 10,000N (1,000kg).
Fig. 46 -
Towing
point
Fig. 47 – Anchor points for towing, front and rear
