To replace the filters follow the instructions below, with reference to
fig. 51.

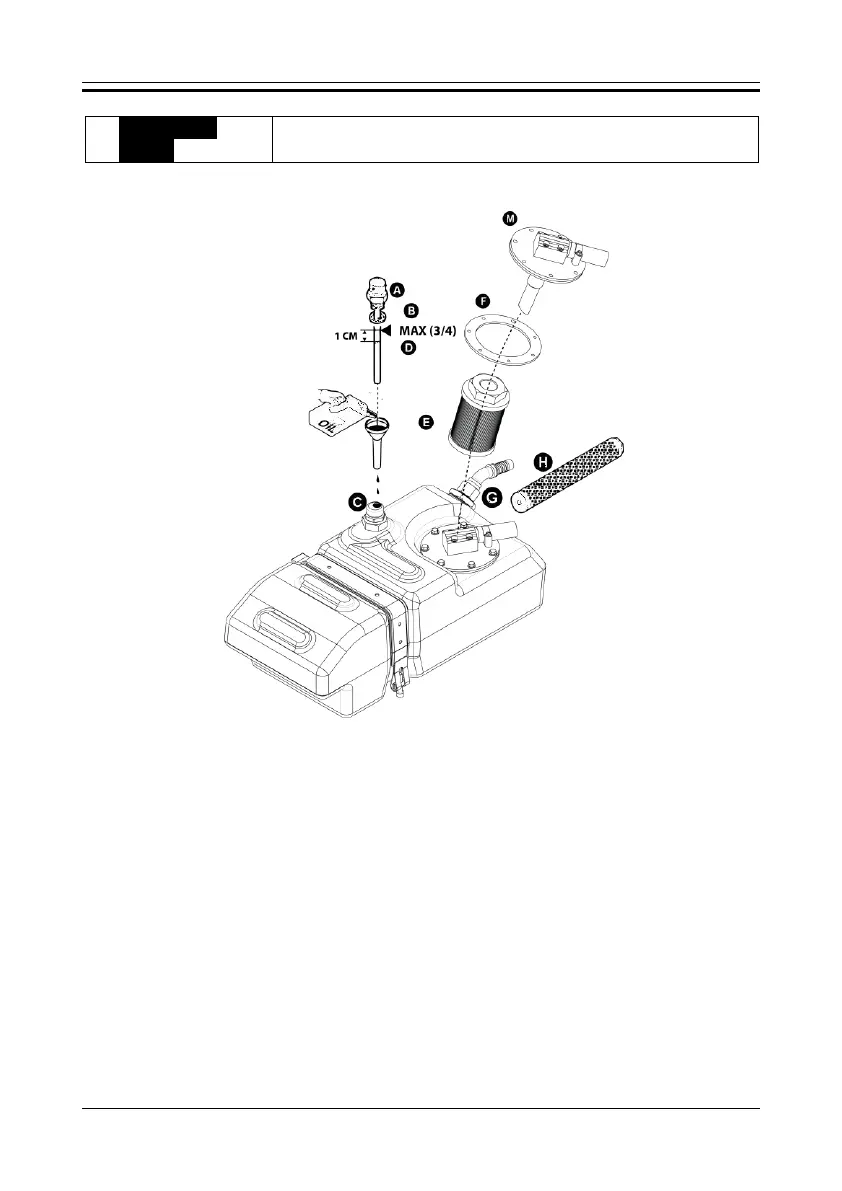

Fig. 51 – Oil and filters replacement
Replacement
•
Empty the oil tank, following the procedure indicated above;
•
Loosen the fixing screws “M” from the oil tank cover;
•
First, replace the filter “H” mounted directly in the hydraulic oil tank;
•
Unscrew the coupling nipples “G”;
•
Replace the filter “H” and tighten the nipple back on, paying attention to
the position of the seal;
•
To change the filter “E” it is necessary to loosen the coupling sleeve “F”;
•
Unscrew the filter “E” from the fitting;
•
Screw the fitting “F” on the new filter “E” always interposing the seal;
•
Screw the sleeve back onto the inlet tube in the tank;
