1.5.2.
LOCKING LIFTING (“HI-TIP”) OF THE CONTAINER AND SELF-LOADER
The container lifting device, for high unloading (“Hi-Tip”), can be locked in
the raised position to prevent accidental movement.
Before carrying out repairs and/or maintenance with the Hi-Tip raised,
always lock the piston following the procedure.

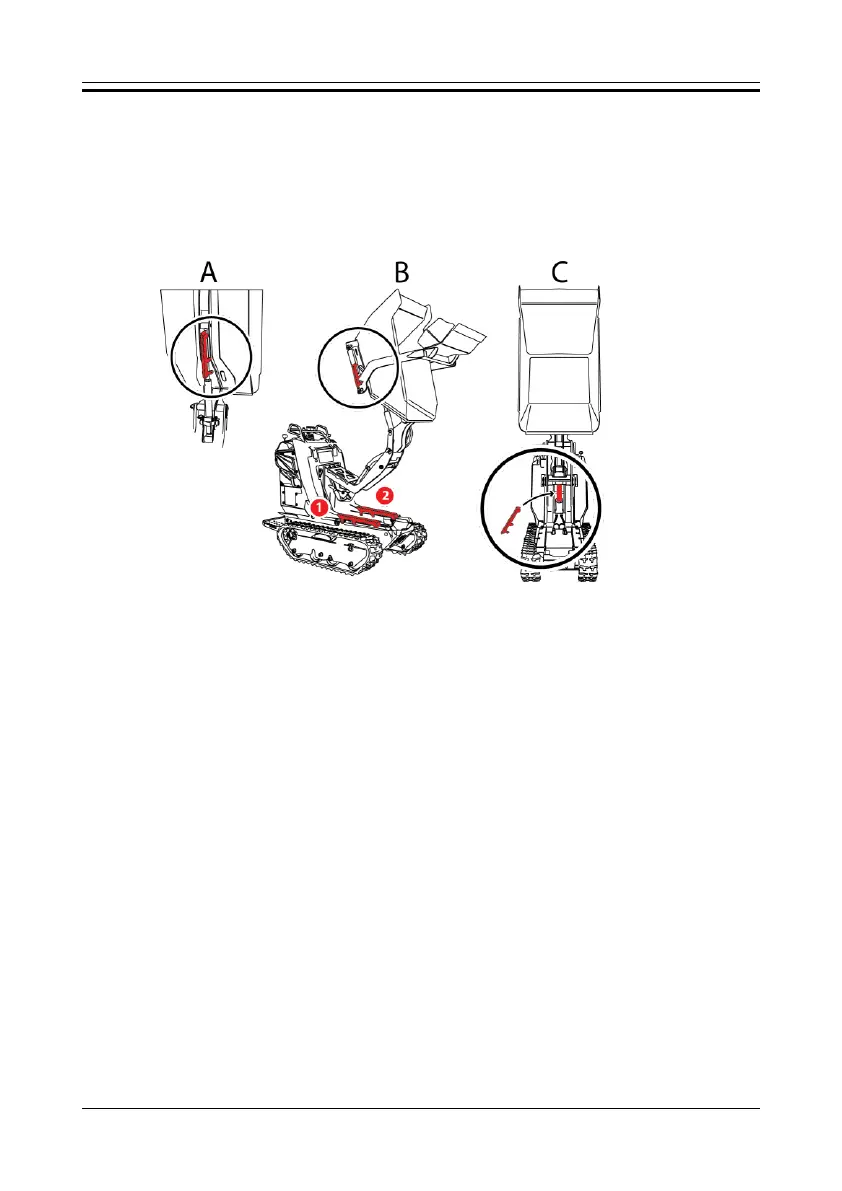

fig. 2 – Safety devices
•
Lift the Hi-Tip mechanism, the arm and tilt the container
•
Turn off the engine;
•
Remove the safety device "1", fixed on the frame side member by
unscrewing the black handwheel;
•
Insert the slots of the bar close to the piston of the hydraulic jack C
•
Turn the bar, positioning it parallel to the piston;
•
Slowly lower the group with the engine off until engagement of the
device.
The same procedure also applies to stopping the container and the arm.
At the end of the intervention, remove the device and place it back into its
housing on the frame.
