CORNING CCH-CS - Page 10

STANDARD RECOMMENDED PROCEDURE 003-895 | ISSUE 4 | OCTOBER 2017 | PAGE 10 OF 12
1
2
TPA-3928

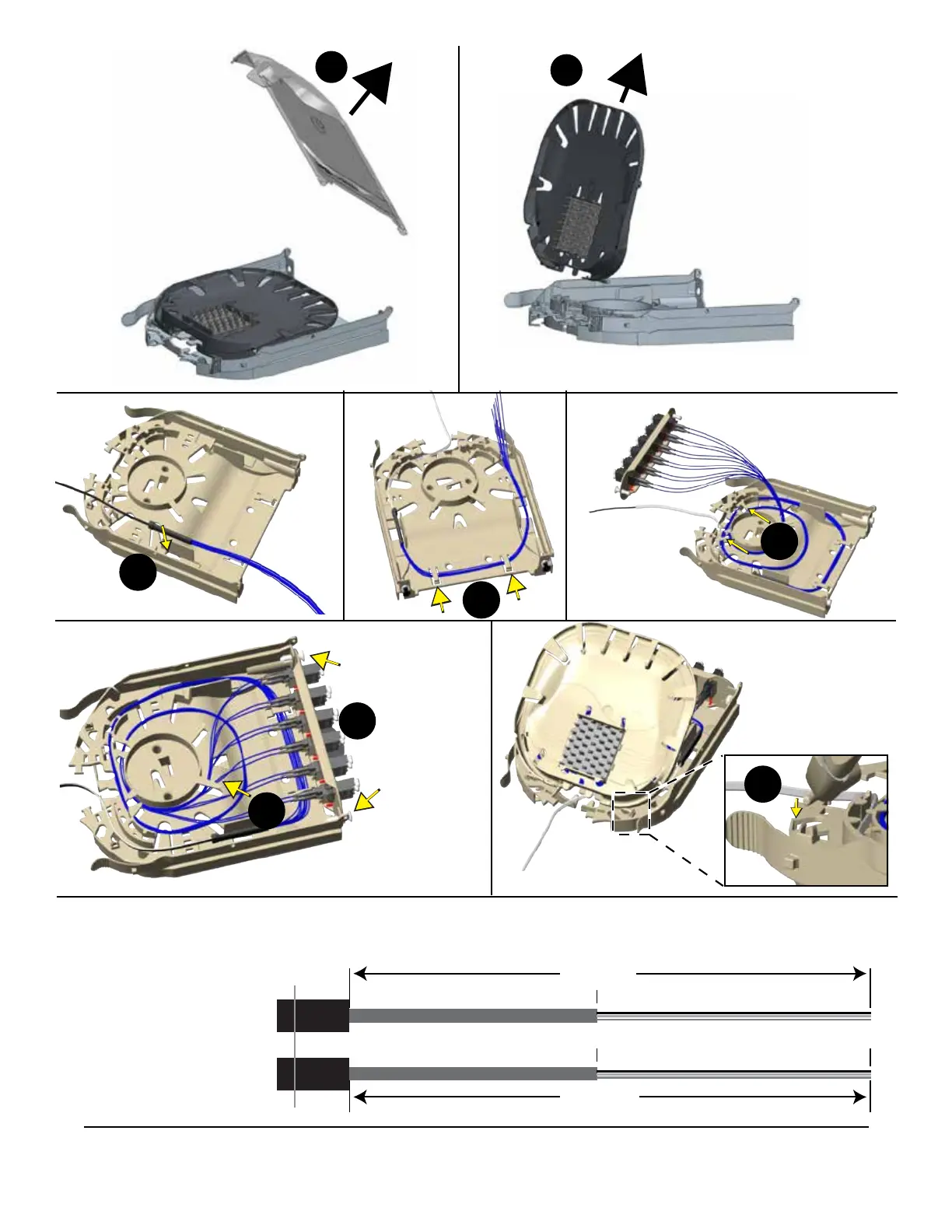

5.2 Incoming Cable Preparation
6
5
TPA-3938
7
Capture fibers and
ribbon under flanges.
TPA-3939
TPA-3939
8
10
Press plungers
to install
adapter panel.
9
Ensure slack is properly
managed.
60 cm (24 inches)
120 cm (48 inches)
120 cm (48 inches)
210 cm (82 inches)
Strip Lengths
for Splicing
Strain-relief
Point
TPA-3951
1U/2U/3U Housing
4U Housing
280 cm
(110 inches)
330 cm
(130 inches)
