3. Preparing Housings for Cassette Installation

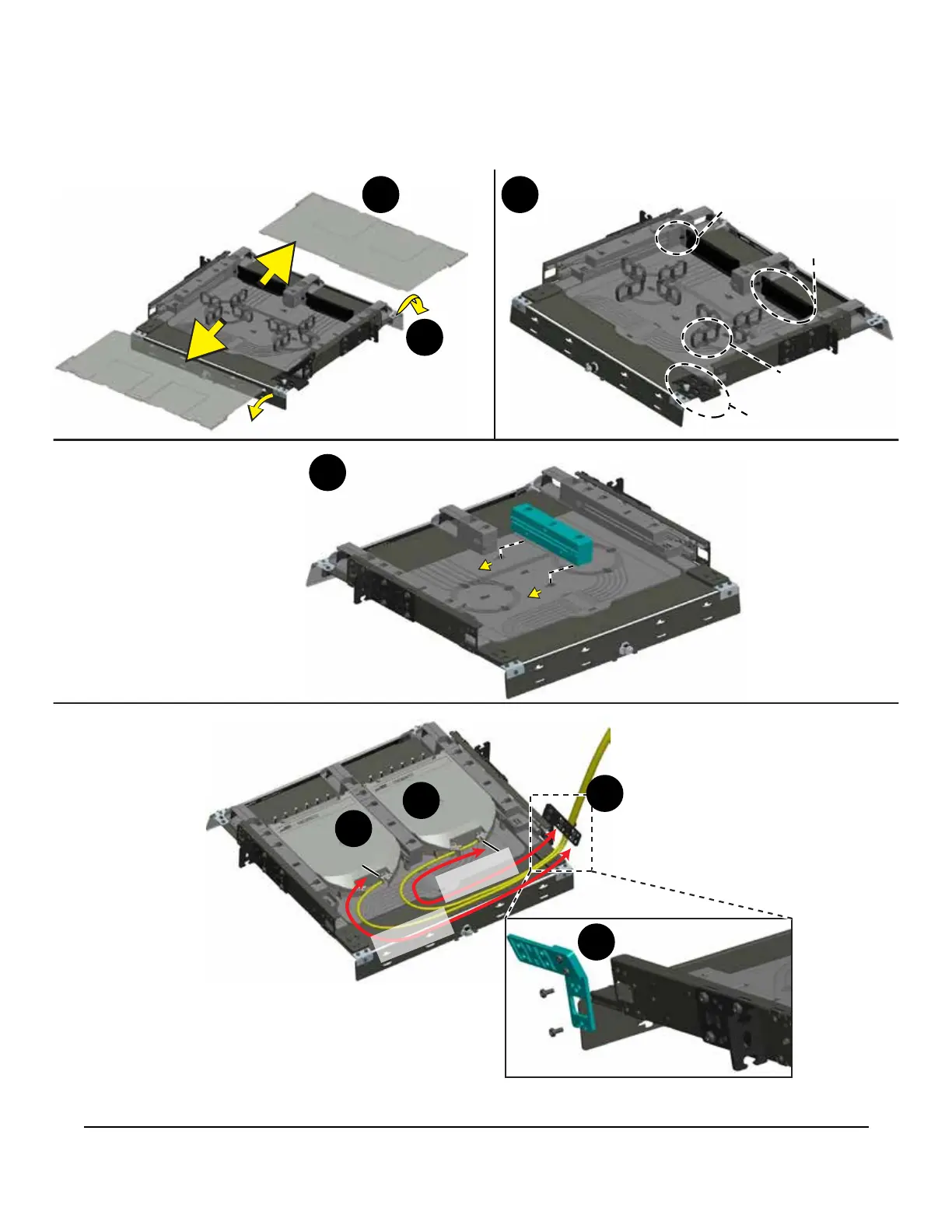

3.1 Cassette Installation in CCH-01U, CCH-02U, or CCH-03U Closet Connector

Housing

TPA-3943

Slide covers

apart to

remove.

Remove:

Open front and

back doors.

8 Routing Guides

1 Strain-relief Bracket

2 Blank Panels

4 Panel Clips

Install rear

stacker. Slide

into keyhole.

TPA-3943

2 3

60 cm

(24 inches)

60 cm

(24 inches)

NOTE: FINAL ROUTING AND

INSTALLATION
