3.2 Cassette Installation in CCH-04U Closet Connector Housing

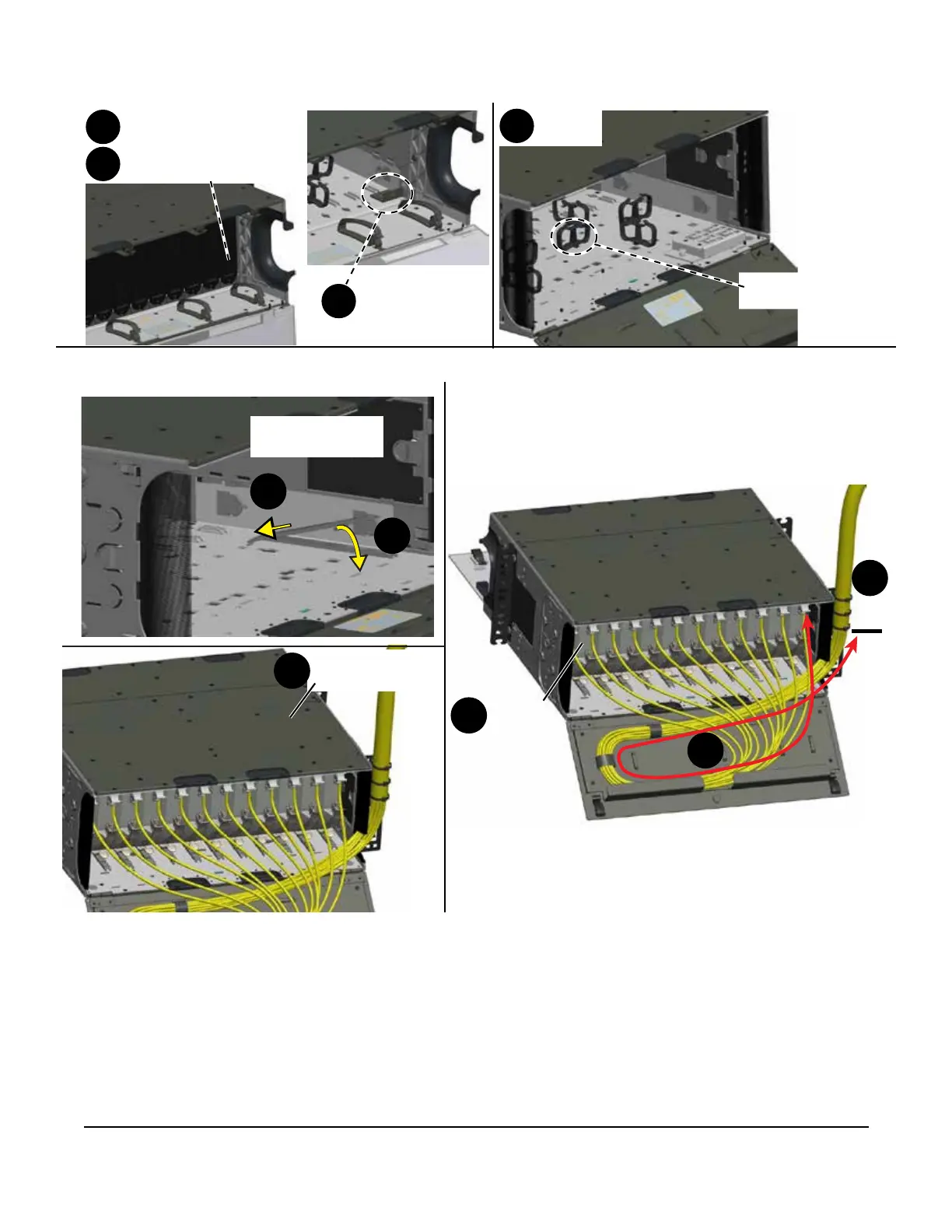

TPA-3943
Remove:
Open front and rear doors.
Remove:
24 Panel Clips
12 Blank Panels
TPA-3944
Remove:
8 Routing Guides
2
1
4
3
TPA-3945
Install:
12 Tracks in base
Install:
10 Tracks in roof
Install
cassettes
(up to 12).
110 cm
(44
inches)
5
6
8
9
10
7
NOTE: FINAL ROUTING AND
INSTALLATION
