3.3 Preparing Splice Cassette
NOTE: Rotate splice organizer 90-degrees from its factory-installed orientation meant for single bers
to the orientation shown for ribbon ber splices.

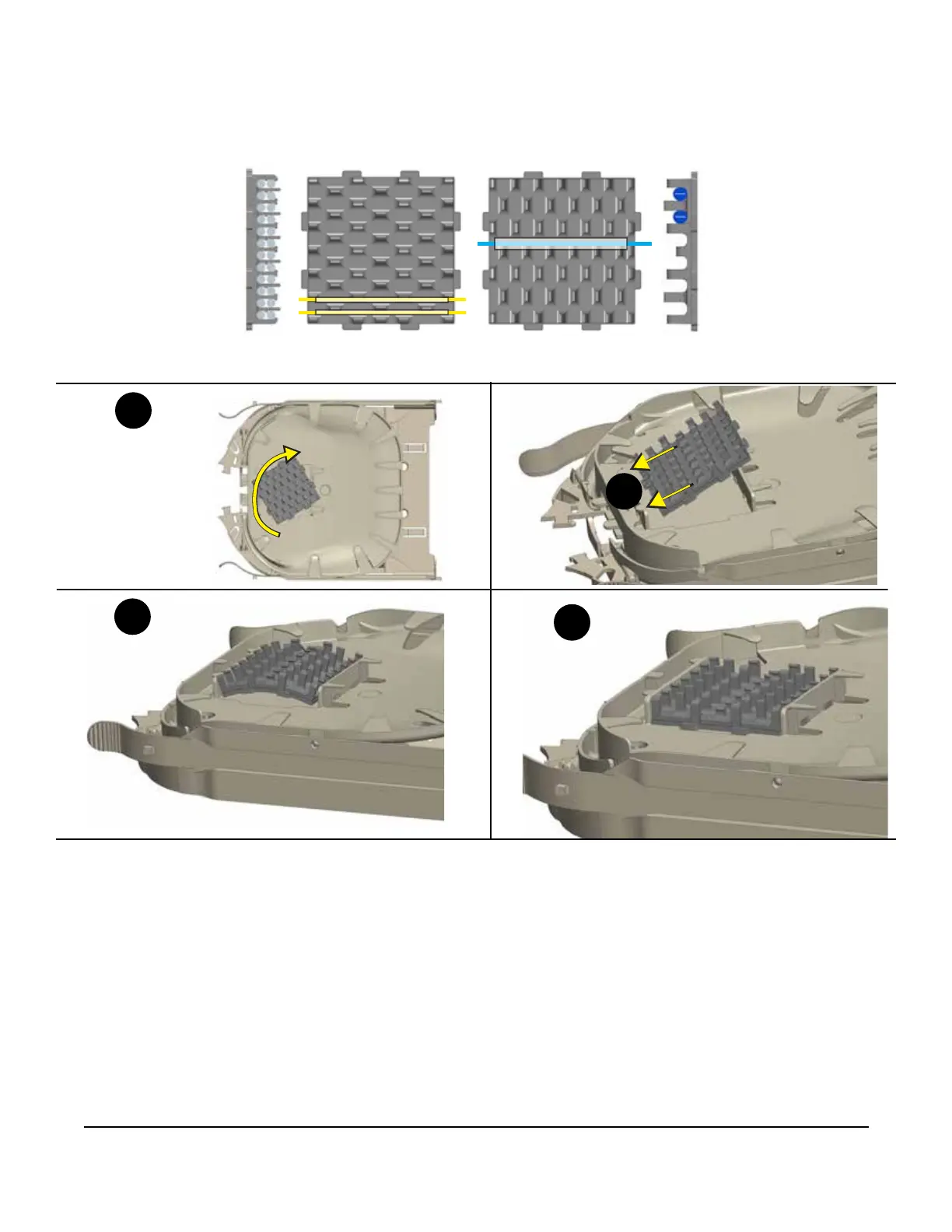

Single-fiber Orientation Mass Fusion Ribbon Orientation
TPA-3949
90°
TPA-3940
TPA-3840
1
4
2
Remove cover.
Rotate organizer,
if required.
3
Flex organizer to
reinstall.
Organizer installed
in orientation for
ribbon storage.
