CORNING CCH-CS - Splice Cassette (CCH-CS) Installation - Ribbon Fiber

STANDARD RECOMMENDED PROCEDURE 003-895 | ISSUE 4 | OCTOBER 2017 | PAGE 9 OF 12
Loose Tube Fiber
Tight-buffer Fiber
Protect tight-buffer fiber with braided tubing, if
needed, for multiple cables or 24-fiber cables.
TPA-3950
10
Store up to 96.5 cm (38 inches) of cable slack under cassette.

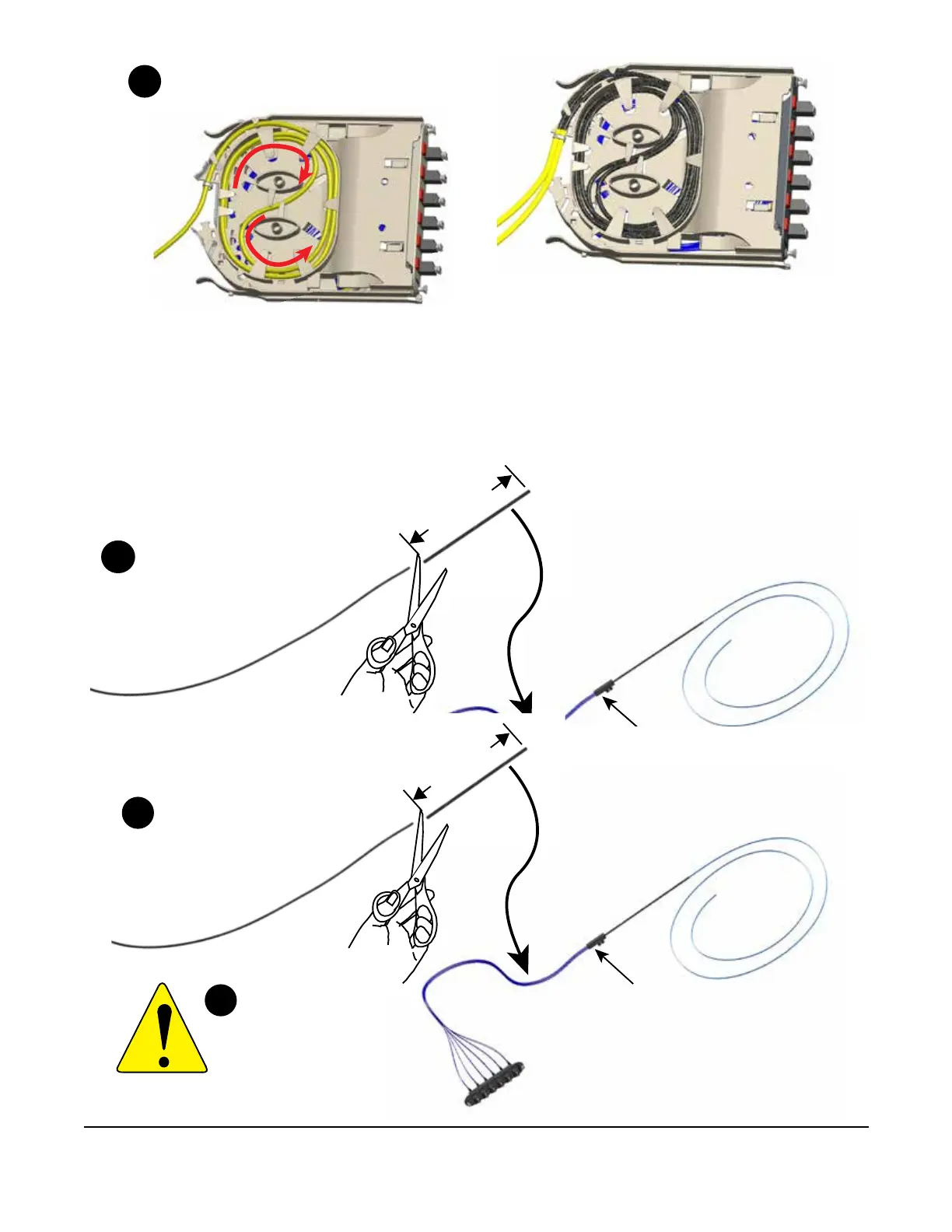

5. Splice Cassette (CCH-CS) Installation — Ribbon Fiber
5.1 Ribbon Fiber Preparation and Routing
Ribbon Pigtail
TPA-3937
23 cm
(9 inches)
1
Cut 23 cm (9 inches) of protective tubing.
2
CRITICAL STEP:
Slide tubing onto ribbon
up to the fan-out body.
Ribbon Pigtail
TPA-3937
23 cm
(9 inches)
1
Cut 23 cm (9 inches) of protective tubing.
2
CRITICAL STEP:
Slide tubing onto ribbon
up to the fan-out body.
