STANDARD RECOMMENDED PROCEDURE 003-895 | ISSUE 4 | OCTOBER 2017 | PAGE 11 OF 12
TPA-3941-2
2
1
4
3

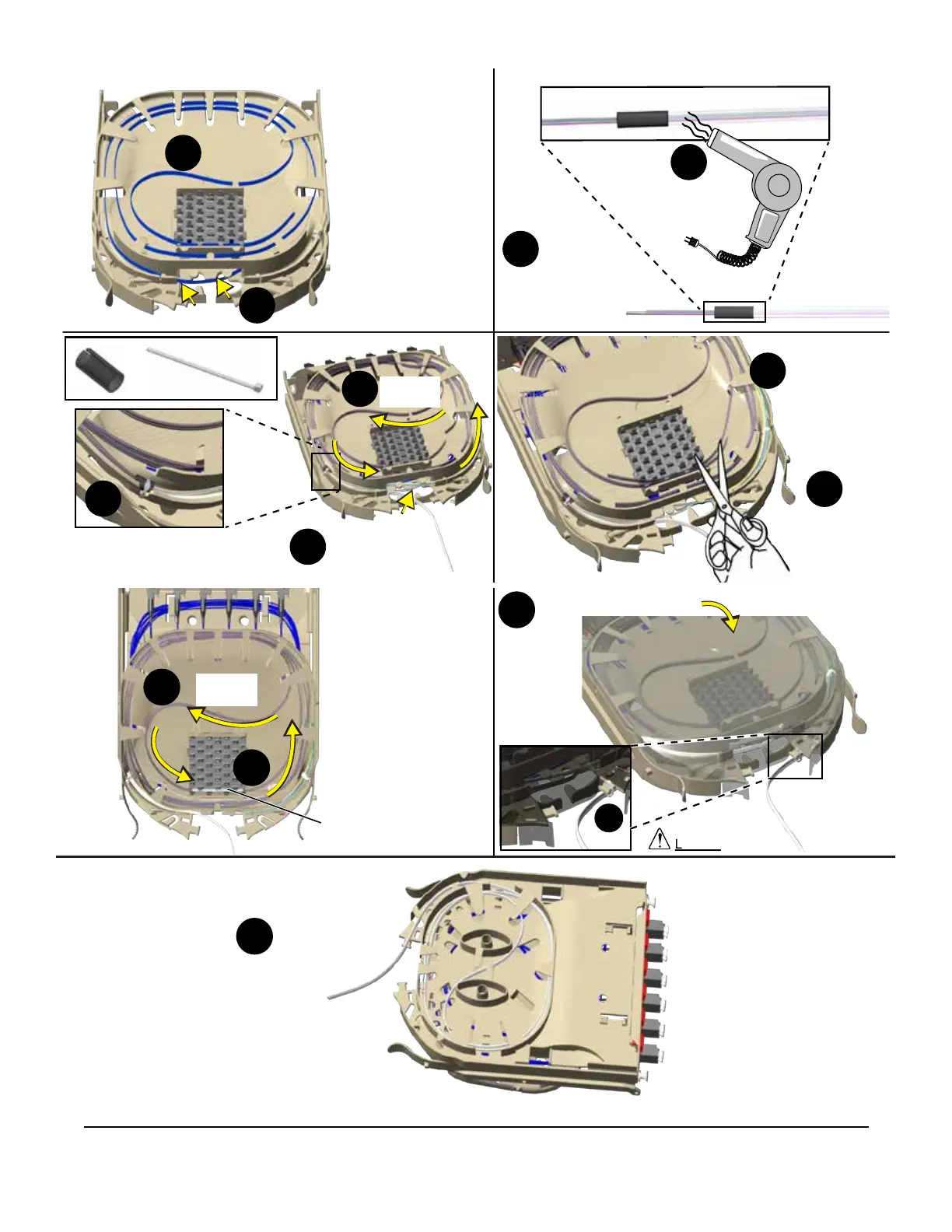

Bring pigtail ribbon
from bottom layer
into top layer.
Slide heatshrink tube
onto ribbon up to jacket.
Route as
shown.
6
5
Apply heat to heatshrink tube.
Route ribbon
to bottom layer.
7
8
9
Place ribbons in tube;
secure with cable tie.
Route as
shown.
Splice per the
instructions
provided with
the splice
equipment.
Cut ribbons in
center of
organizer.
TPA-3942
12
13
14
11
10
Route as
shown.
Store heatshrink tubing
in splice organizer.
Store ribbon in
slack storage area
on bottom layer.
Replace and close cover.
Loosely secure ribbon with cable tie.
