ONE SD-LAN Head
End Equipment
Quick Installation Guide
SD-LAN-000-HEEQUIP
Qucik Installation I SD-LAN-000-HEEQUIP

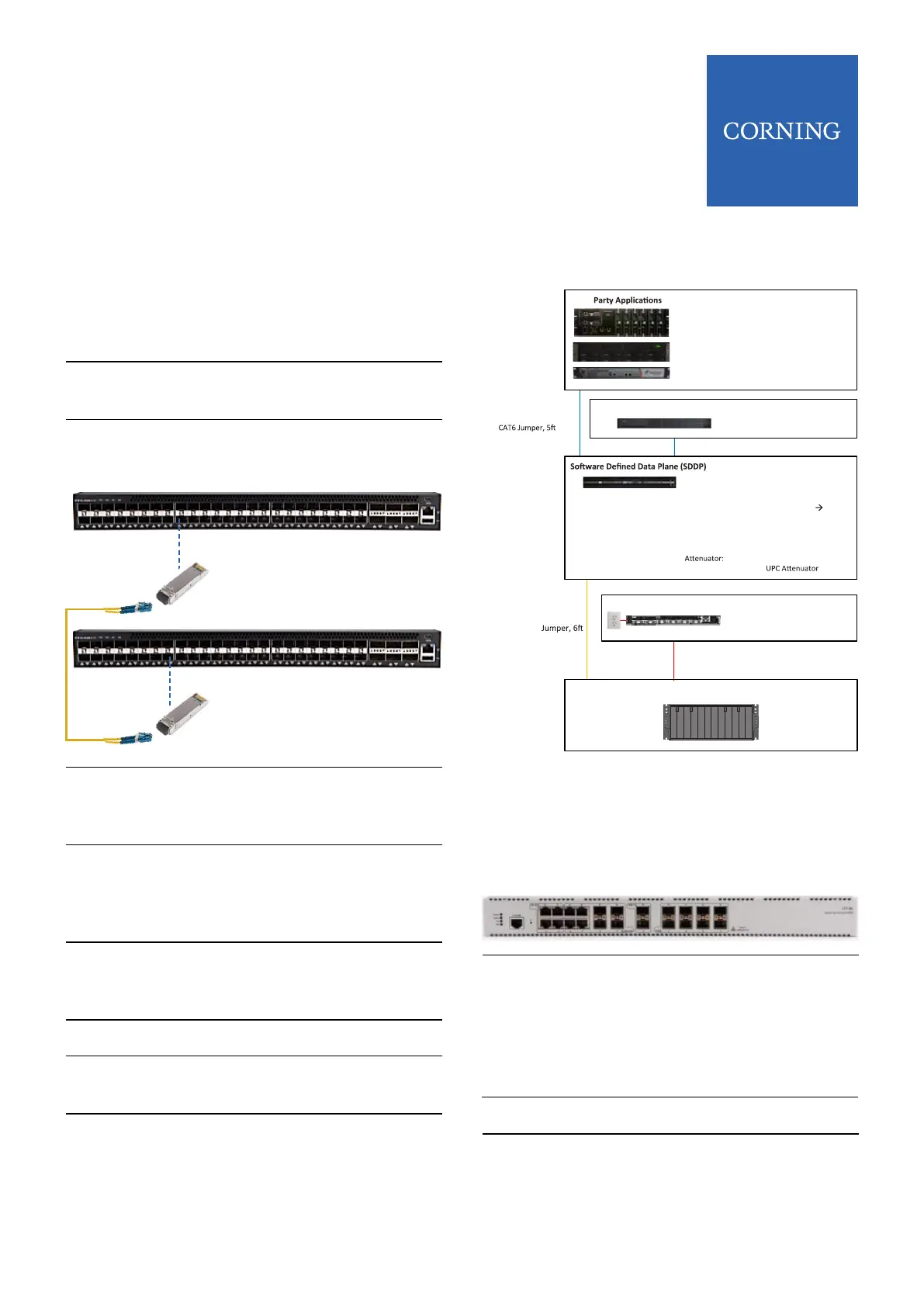

5.2 Active Ethernet Connections using SDDP
Aggregation Switch
6.1 OLT Connections
Step 1
Step 1
Step 2
Step 2
Step 3
Step 3
Step 4
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
Mount SDDP Aggregation Switch in
rack with SDDP TOR switch
Mount OLT (1LAN-SDOLT-0587 or
1LAN-SDOLT-0587) in Head End
equipment rack with SDDP
TOR switch
Connect power to SDDP Aggregation
Switch
Connect power leads to OLT power
supply on back of unit
1LAN-SFP-1GB-LXLH
1LAN-SFP-1GB-LXLH
Insert a ber SFP (1LAN-SFP-1GB-
LXLH) into available port on SDDP
TOR switch
Power OLT on
Insert a ber SFP (1LAN-SFP-1GB-
LXLH) into available port on SDDP
Aggregation Switch
Insert the appropriate SFP into
available port on SDDP TOR switch
Using an LC/UPC – LC/UPC Duplex
jumper, connect the SFP in the TOR
switch to the SFP in the Aggregation
Switch
Insert a Bi-Di Fiber SFP (1LAN-SFP-
4305BC) into an open port on the
SDDP Aggregation switch
Connect a 10dB attenuator into SFP
Connect an LC/UPC connector
jumper to the attenuator
Plug the other end into ber patch
panel that connects the ber link to
an Access Node
6 PON Set Up |
NOTE: Make sure that power supply is not on when
making connections to OLT. Power supply in OLT is
not hot swappable. Make sure the OLT is grounded
properly.
AB CD EF GH IJ KL
Patch Panel
Examples:
IPTV
WIFI
SECURITY
IP PHONE
BMS
Etc.
3
RD
Virtual App Host / Server
p/n: 1LAN-SRV-50195L
p/n: 1LAN-D600E05-BL
p/n: 1LAN-SDDP-48P
SFPs:
1LAN-SFP-4305BC Bi-Di SFP, 1Gb
to ONT
1LAN-QSFPP-40GB-LR 40Gb SFP
1LAN-SFPP-10GB-LR 10Gb SFP
1LAN-SFP-1GB-LXLH 1Gb SFP
1LAN-SFP-1GCU Cu SFP
1LAN-OA-UPC
Power Supply Unit
p/n: PSU6-1U
Power Module:
PSM-I
Patch Panel
p/n:
024401G2131006F
LC/UPC to SC/APC
