SECTION 3
K

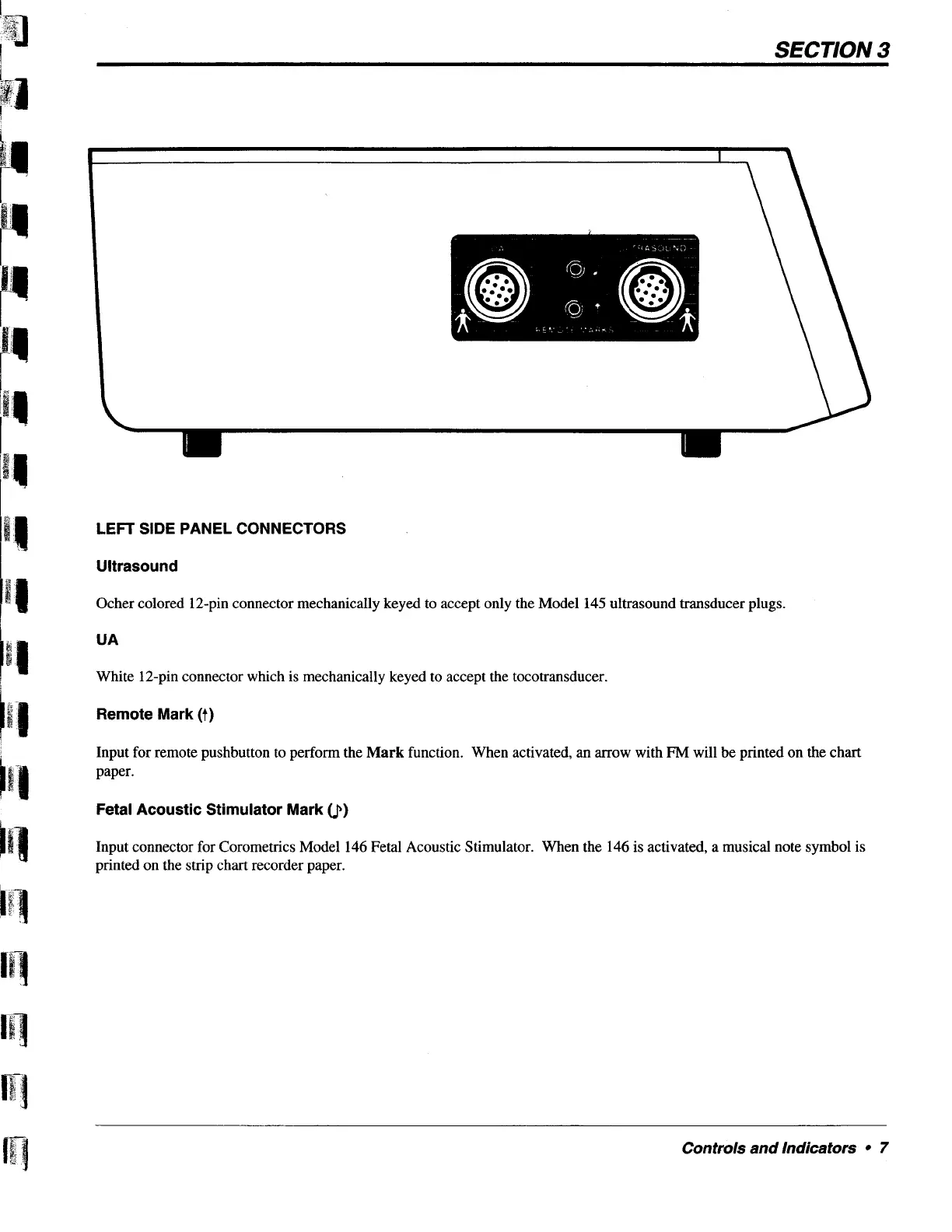

LEFT SIDE PANEL CONNECTORS
Ultrasound
Ocher colored 12-pin connector mechanically keyed to accept only the Model 145 ultrasound transducer plugs.
UA
White 12-pin connector which is mechanically keyed to accept the tocotransducer.
Remote Mark (+)
Input for remote pushbutton to perform the Mark function. When activated, an arrow with FM will be printed on the chart
paper.
Fetal Acoustic Stimulator Mark ())
Input connector for Corometrics Model 146 Fetal Acoustic Stimulator. When the 146 is activated, a musical note symbol is
printed on the strip chart recorder paper.
Controls and Indicators ο 7
