SECTION 3
CONNECT TO COROMETRICS
SERIES 400 MONITORS ONLY
CAUTION: ELECTRIC SHOCK HAZARD. DO
TO QUALIFIED PERSONNEL.
WARNING: RISK OF FIRE. REPLACE ONLY
WITH 250V SLOW FUSE OF SPECIFIED
NOT REMOVE COVER. REFER SERVICE ONLY
COROMETRICS* FETAL MONITOR MODEL 145
COROMETRICS MEDICAL SYSTEMS, INC.
WALLINGFORD, CONNECTICUT, U.S.A.
VOLTAGE] MAX. _| LINE
SELECTOR] RANGE |CURRENT|FUSE
120V- |105-130-| ¿Lona [0.5 A
CURRENT RATING.
더 | 6
COROMETRICS MEDICAL SYSTEMS, INC. y
WALLINGFORO. CONN USA
CANADIAN PAT. 1,057,960 ITALIAN PAT. 1.057.243 MAX POWER 50 WATTS
FRENCH PAT. 76.05051 U.S. PAT. 4.573,479 LINE FREQUENCY 48 - 62 Hz

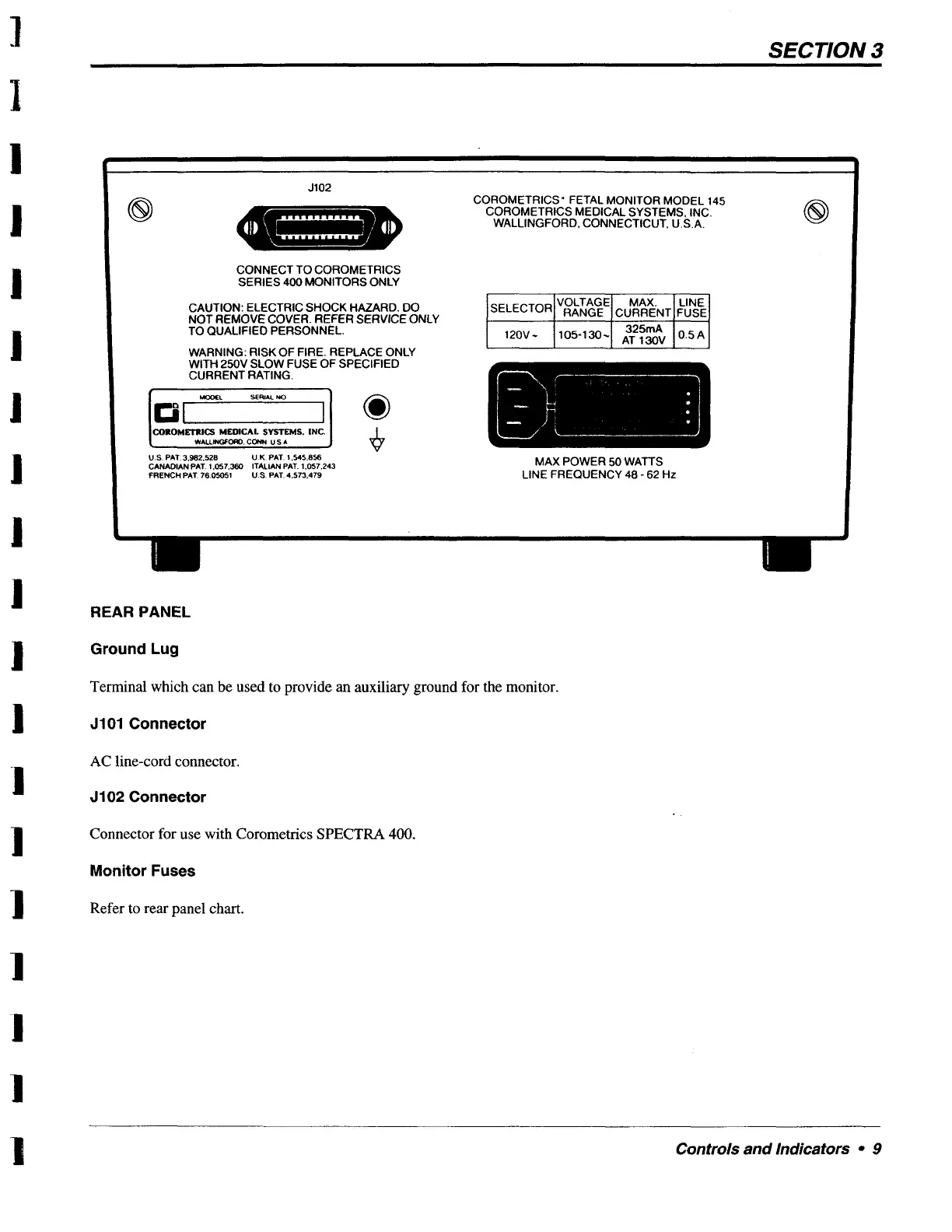

REAR PANEL
Ground Lug
Terminal which can be used to provide an auxiliary ground for the monitor.
J101 Connector
AC line-cord connector.
J102 Connector
Connector for use with Corometrics SPECTRA 400.
Monitor Fuses
Refer to rear panel chart.
