AMD AM4
AMD AM3
E
F
H
Installez les supports de fixation AMD en
utilisant les vis de fixation AMD incluses.
Bevestig de AMD-montagebeugel met behulp
van de meegeleverde AMD-montageschroeven.
Coloque alineados los separadores que se
incluyen de la base de su socket sobre los
orificios de la parte posterior de la placa AMD.
Zamocuj uchwyt montażowy AMD przy użyciu
śrub montażowych AMD (w komplecie).
使用随附AMD 安装螺丝安装 AMD 安装支架
AMD AMD
   
  

.AMD   

AMD     
. AMD  

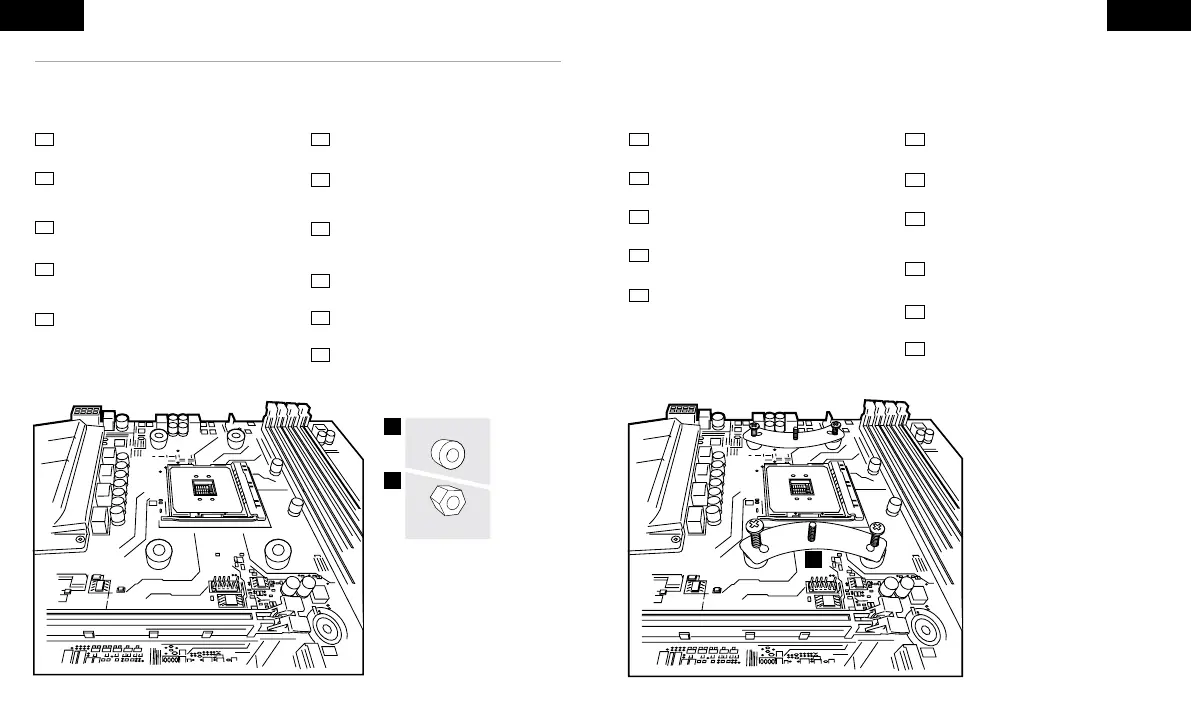

INSTALLING THE AMD MOUNTING BRACKETS
Installation des supports de fixation AMD / Anbringung der AMD Montagehalterungen / Installatie van de AMD-
montagebeugels / Installazione delle staffe di montaggio per AMD / Instalación de los soportes de montaje
AMD / Como instalar os suportes de montagem AMD / Montowanie uchwytów montażowych AMD /
Установка монтажных кронштейнов AMD / / 安装 AMD 安装支架
AMD
   
Align the included spacers based on your
socket over the AMD backplate holes.
Richten Sie die mitgelieferten Abstandshalter
auf der Hauptplatine über die Löcher der AMD
Rückplatte aus.
Allineare i distanziatori in dotazione in base al
socket sopra i fori della piastra posteriore AMD.
Alinhe os espaçadores incluídos com base
no soquete sobre os orifícios da placa
traseira AMD.
Выровняйте прокладки (входят в комплект
поставки) относительно разъема над
отверстиями в опорной пластине AMD.
Install the AMD mounting bracket using the
included AMD mounting screws.
Montieren Sie die AMD Montagehalterung mit
den mitgelieferten AMD Montageschrauben.
Installare la staffa di montaggio per AMD
usando le viti di montaggio per AMD incluse.
Instale o suporte de montagem AMD usando
os parafusos de montagem AMD incluídos.
С помощью отвертки (входит в комплект
поставки) закрутите винты с пружинами на
несколько оборотов, не затягивайте полностью
каждый винт в отдельности.
Alignez les écarteurs inclus en fonction de votre
prise sur les trous de la plaque arrière AMD.
Lijn de meegeleverde afstandsringen op basis
van jouw socket uit op de gaten van de AMD-
achterplaat.
Coloque alineados los separadores que se
incluyen de la base de su socket sobre los
orificios de la parte posterior de la placa AMD.
Instale el soporte de montaje AMD mediante
los tornillos de montaje AMD que se incluyen.
根据插槽将随附的垫片通过 AMD 对齐。
EN ENFR FR
NL NL
ES
ES
PL
PL
AR
AR
SC
SC
DE DE
IT
IT
PT
PT
RU
RU
