Corsair H100i v2 User Manual

1
Installing the Intel Backplate

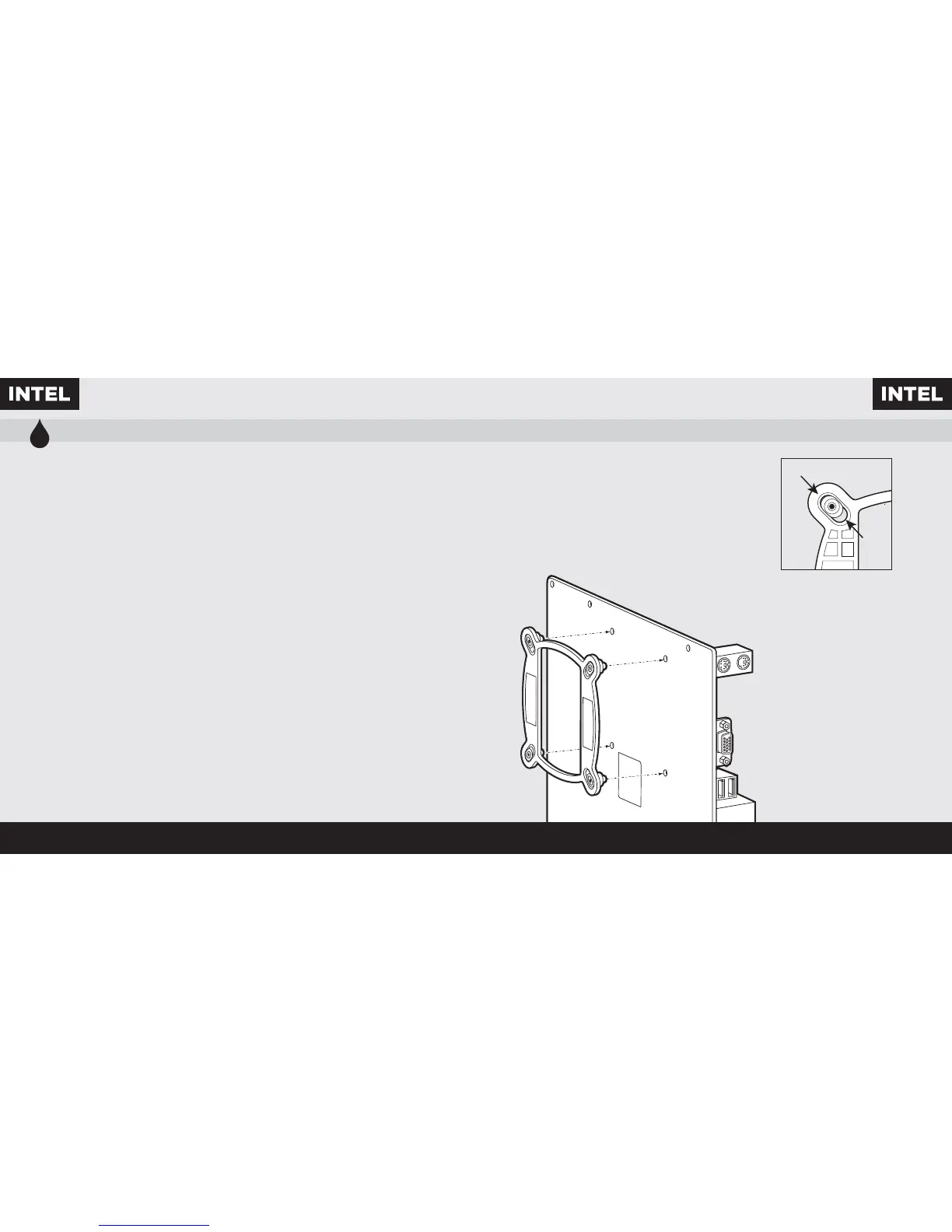

• For LGA 115X installation, slide the backplate
pins inside (figure 1).
• For LGA 1366 installation, slide the backplate
pins outside (figure 1).
• Install the assembled backplate (figure 2).
Note: Intel LGA 2011 does not require backplate
installation. Proceed to step 2.
LGA 1366
LGA
115X
figure 1
figure 2

Corsair H100i v2 Specifications

General

Radiator Dimensions	276mm x 125mm x 30mm
Fan Dimensions	120mm x 25mm
Noise Level	37.7 dBA
Radiator Material	Aluminum
Fan Airflow	70.69 CFM
Radiator Size	240mm
Tube Length	300mm
Warranty	5 years
Fan Speed	2435 RPM
Compatibility	Intel LGA 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, AMD AM2, AM3, FM1, FM2
Fan Static Pressure	4.65 mmH2O
Type	Liquid Cooling System
Tubing Material	Low-permeation rubber with black sleeving
