Dual Potential Mode
The black wire is connected to the common reference point, which in many cases is a reference cell. The red wire is
connected to the first potential measurement point, which may be a pipe or a structure. The blue wire is connected to
the second potential measurement point, which again may be a pipe or a structure. Figure 29 shows a typical attachment
at a test station.
V1 V2
Ref
Black
Potential 2
Blue
Potential 1
Red
uDL2 (Dual Potential Mode)

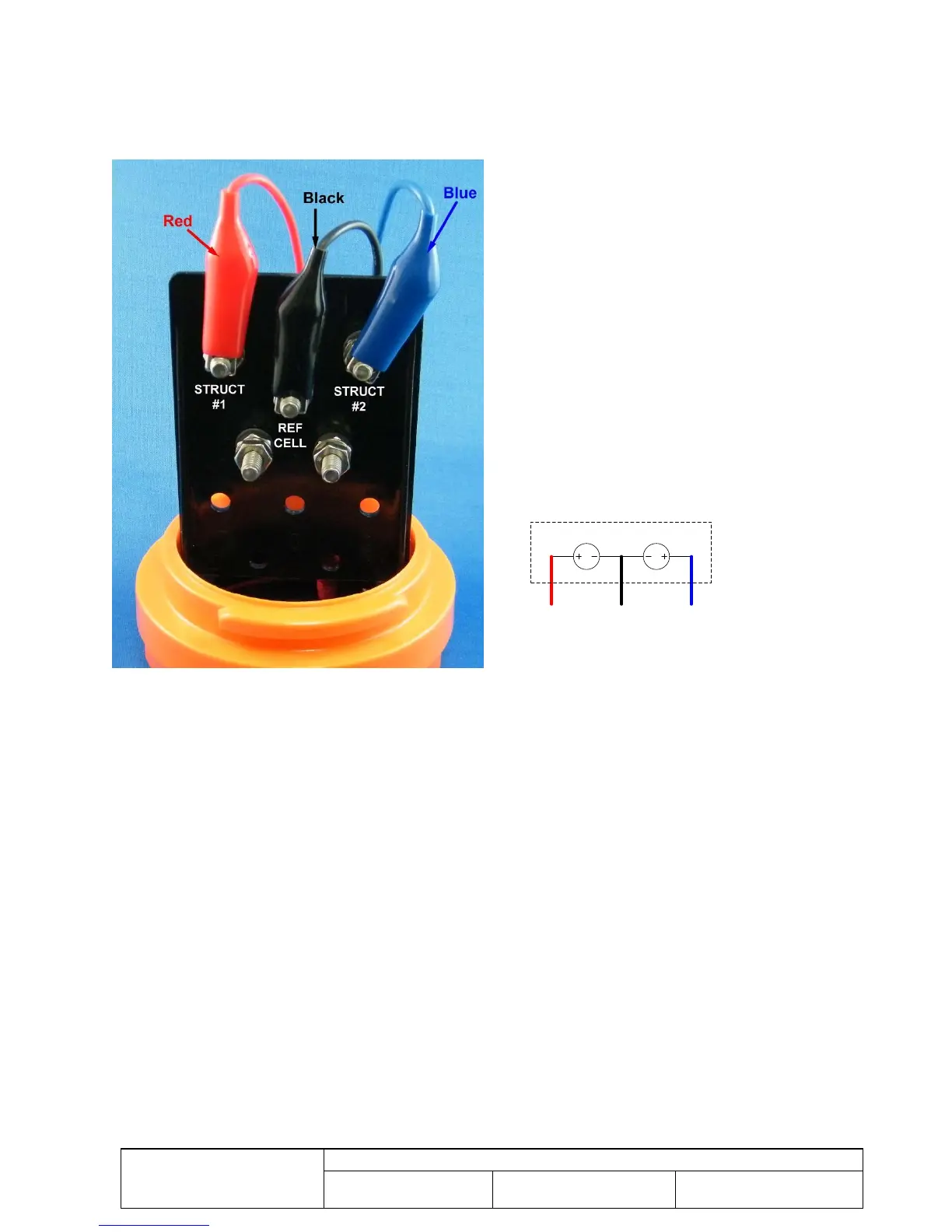

Figure 29 Dual Potential Analog Cable Attachment to a Test Station
